Removing Horn

Information

This information describes how to remove and install the left horn. The right horn is removed and installed as a mirror image of the steps described for the left horn.

1. Loosen front apron.
   1. 1.1. Unscrew fastening screws -1-  for the front apron and bend the front apron down slightly -arrow "A"-  .

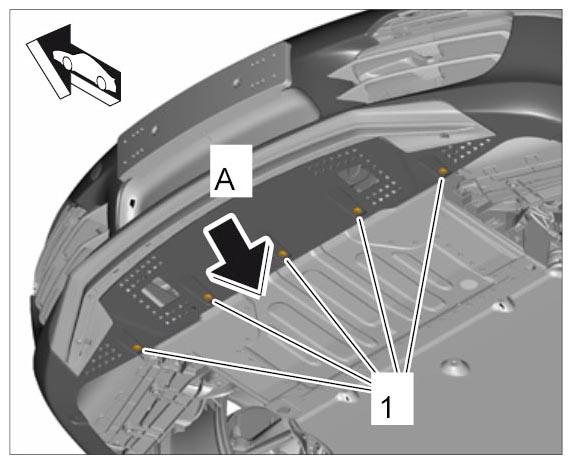

Fig 1: Loosening Front Apron (Shown On 991)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove horn -2-  .

   The horn -2-  must be removed together with the holder.

   1. 2.1. Unscrew fastening nut -1-  and remove the horn -2-  together with the holder.

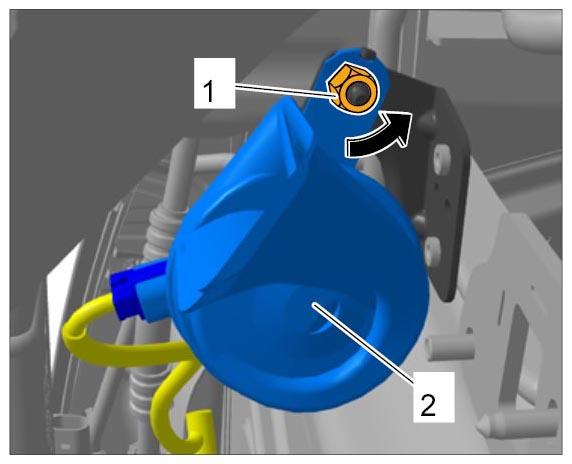

   Fig 2: Removing Horn

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release and disconnect electric plug connection.

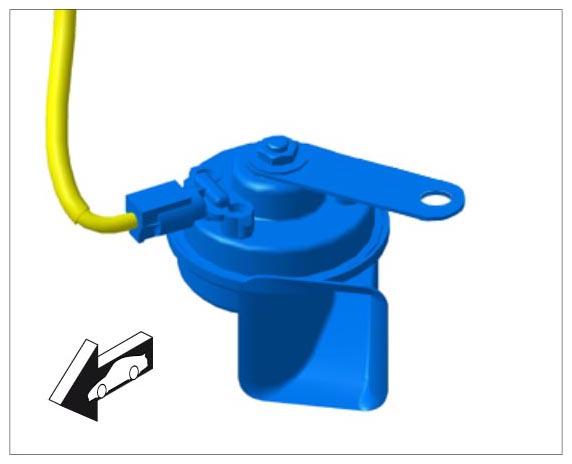

   Fig 3: Identifying Horn With Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
