Removing Instrument Cluster

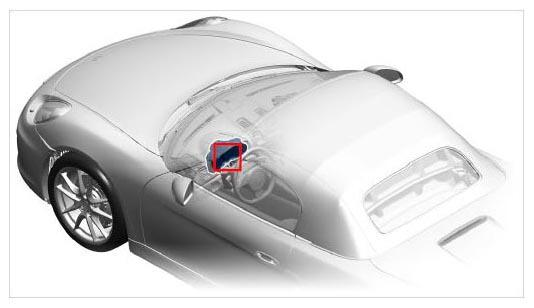

Fig 1: Identifying Instrument Cluster Installation Position
G10028252Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws.

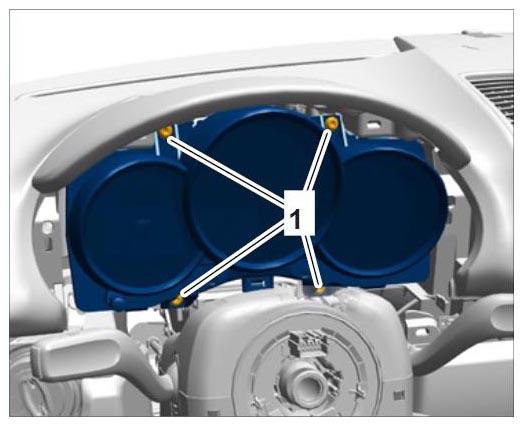

    Fig 2: Identifying Instrument Cluster Screws
    G10028253Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric plug connection -arrow a-  and pull it off -arrow A-  .

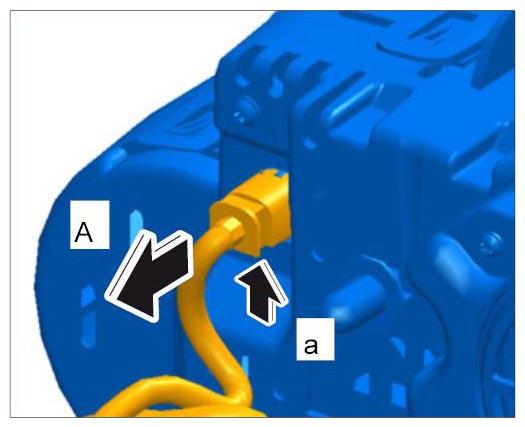

    Fig 3: Unplugging Instrument Cluster Connector
    G10028254Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release clip -1-  on electric plug connection -arrow a-  and bend it over -arrow A-  , then pull off connector -arrow B-  .

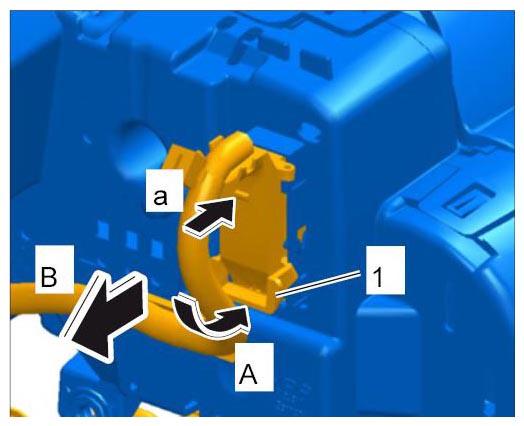

    Fig 4: Unplugging Connector
    G10028255Courtesy of PORSCHE CARS NORTH AMERICA, INC.
