Installing Stopwatch

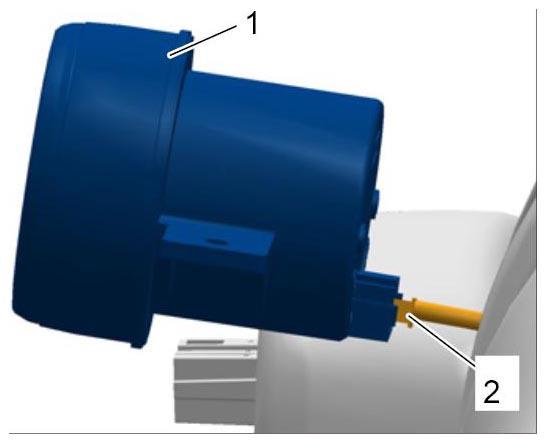

- Connect electric plug connection -2-
for the stopwatch -1-
and place the stopwatch -1-
towards the rear into the dashboard.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

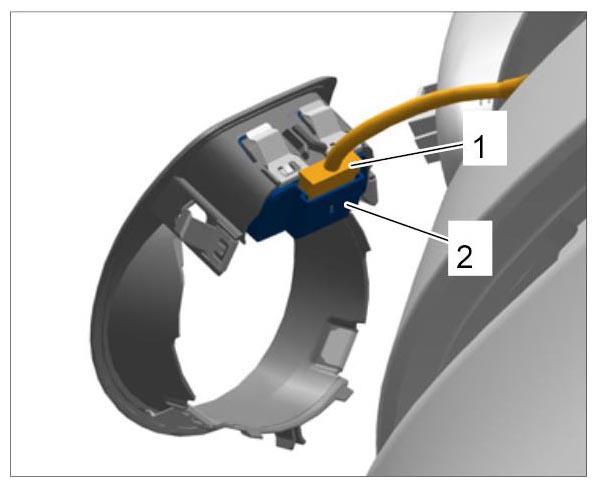

- Connect electric plug connection -1-
on the warning-light switch -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

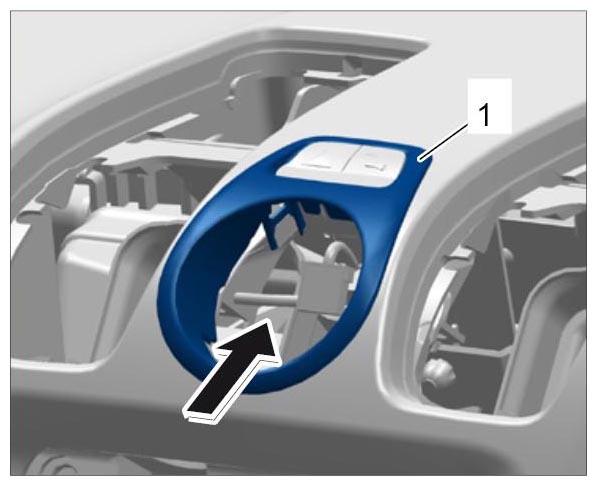

- Clip the cover -1-
into the dashboard.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

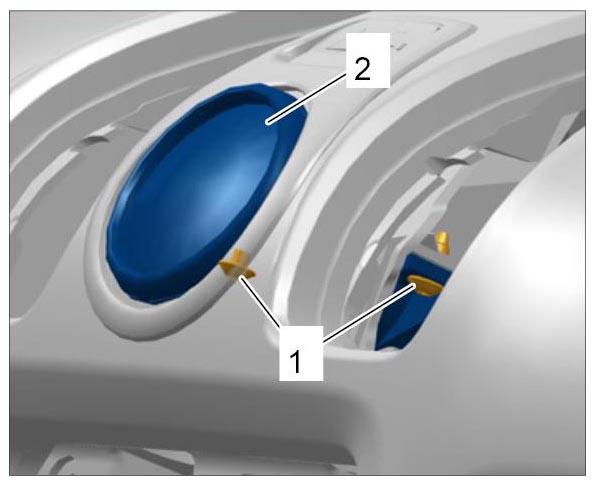

- Position the stopwatch -2-
in the cover from behind.
- Screw in and tighten fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
