Preliminary Work

  1. Remove cover over the brake components (brake booster, brake master cylinder and hydraulic unit). → 852219 REMOVING AND INSTALLING COVER - section on "Removing".
    1. Brake fluid reservoir
    2. Brake master cylinder
    3. Brake booster
    4. Hydraulic unit

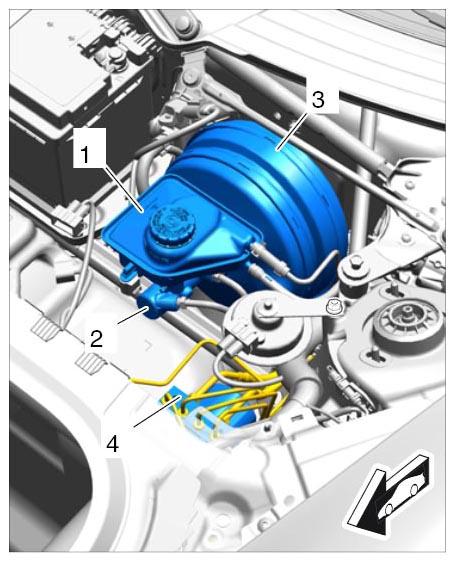

      Fig 1: Identifying Brake Components
      G10026665Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unclip cover at the left and right -arrows-  and remove it.

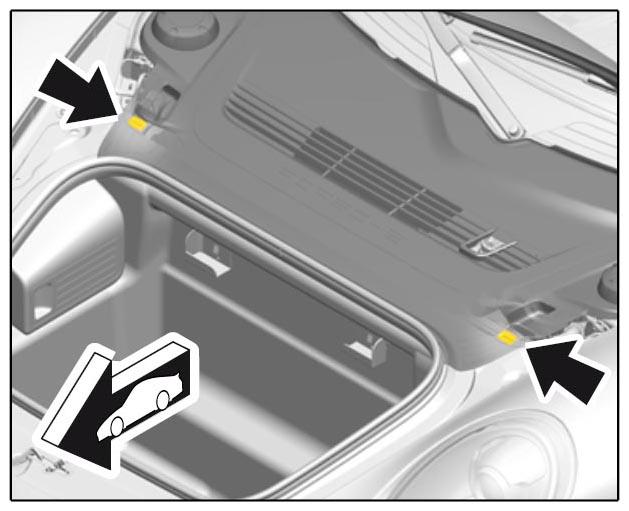

      Fig 2: Removing Brake Components Cover
      G10026666Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove alarm horn.
