Removing Luggage Compartment Light

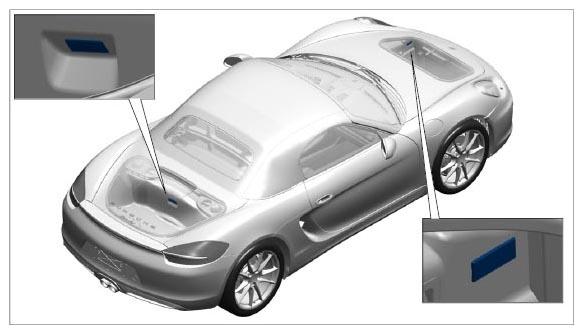

Fig 1: Identifying Luggage Compartment Lamps Installation Position
G10028609Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip luggage compartment lamp -arrow-  and pull out of trim panel.

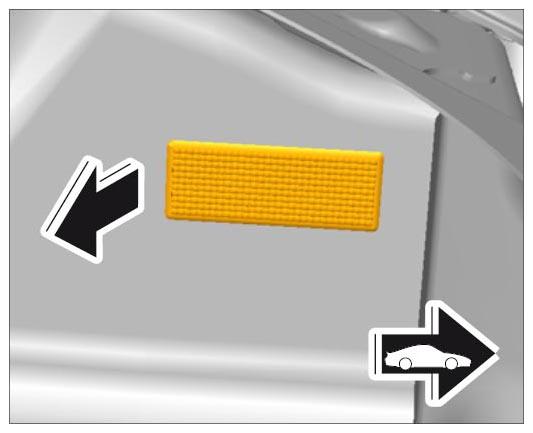

    Fig 2: Removing Luggage Compartment Lamp (Shown On 991)
    G10028610Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull off plug connection -arrow-  .

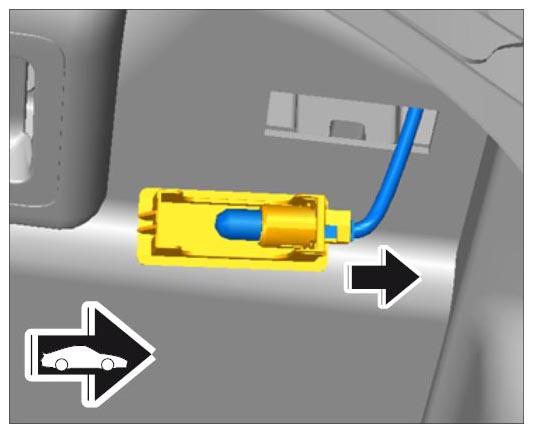

    Fig 3: Disconnecting Plug Connection (Shown On 991)
    G10028611Courtesy of PORSCHE CARS NORTH AMERICA, INC.
