Removing Switch Console

Information

Ignition Switched Off And Ignition Key Removed Before Disconnecting Or Connecting Load  .

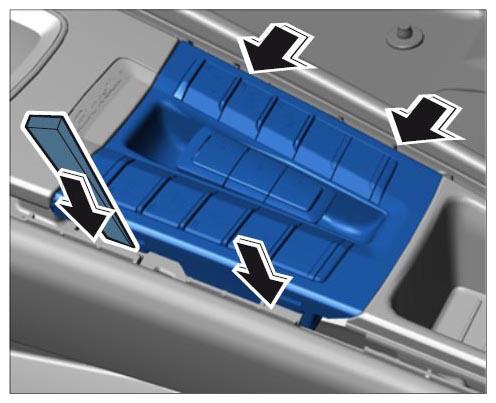

1. Insert plastic wedge into the gap -arrows-  between the trim panel and switch console and carefully lift out switch console.
   Fig 1: Removing Switch Console

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

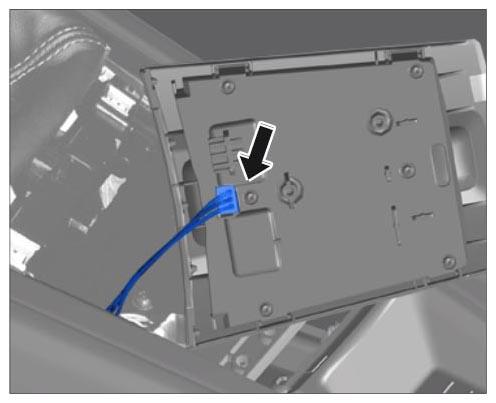

2. Unplug electric plug connection for switch console -arrow-  .
   Fig 2: Unplugging Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
