Installing Switch Console

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

Information

The as-delivered state of the switch console is modular, if it needs to be replaced, the body must be fitted with the operating buttons in accordance with the vehicle equipment.

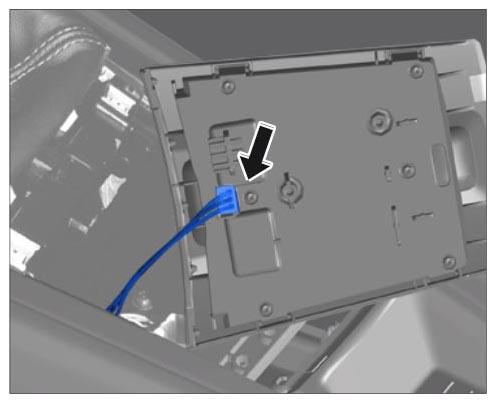

1. Insert the electric plug connection -arrow-  until the connector engages securely.
   Fig 1: Plugging Switch Console Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

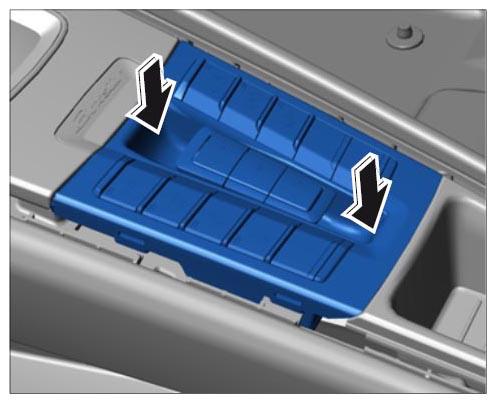

2. Press switch console above and below the middle keypad -arrows-  into the center console until the switch console engages securely.
   Fig 2: Installing Switch Console

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
