Installing Steering-Column Switch

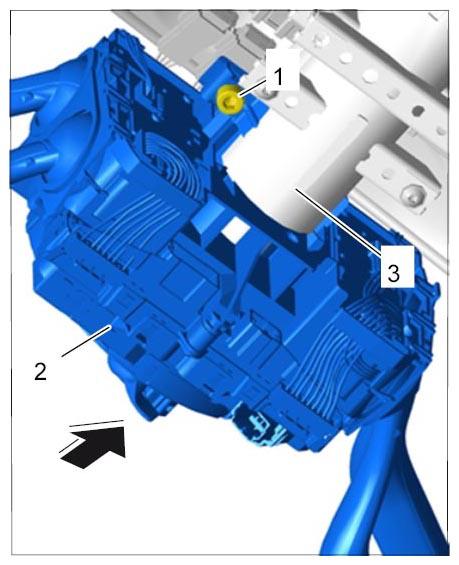

- Slide the steering-column switch -2-
with control unit for steering wheel electronics onto the steering column -3-
(-arrow-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Screw in clamping screws -1-
and tighten to Tightening torque 6 Nm (4.5 ftlb.)
until secure.

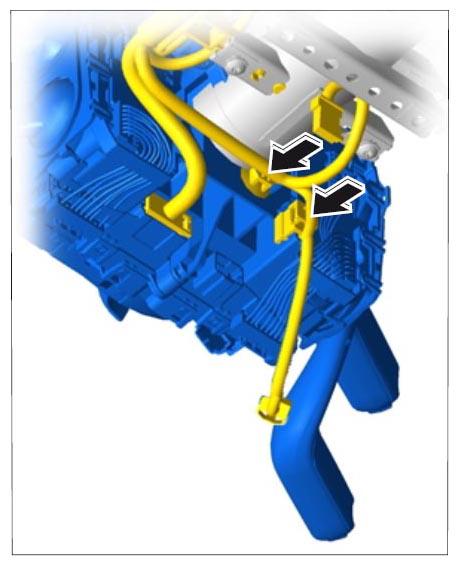

- Secure fixing clips (for wire harness) -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Plug in electric plug connection -arrow-
until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

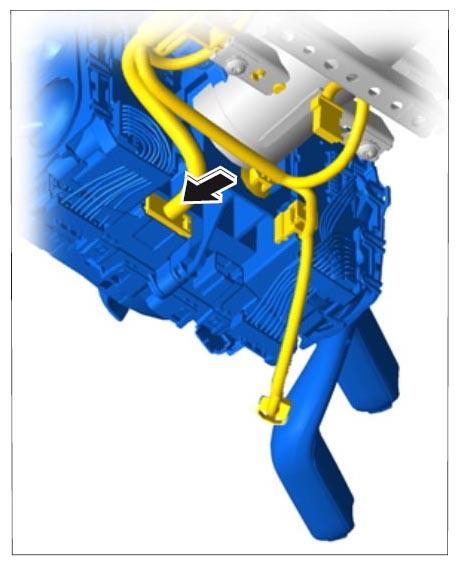

- Plug in electric plug connection -arrow-
until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
