Component Information

Information

The overview is based on a component or cut-out of a 991, the installation position of the control units/components is identical for both the 991 and 981 models.

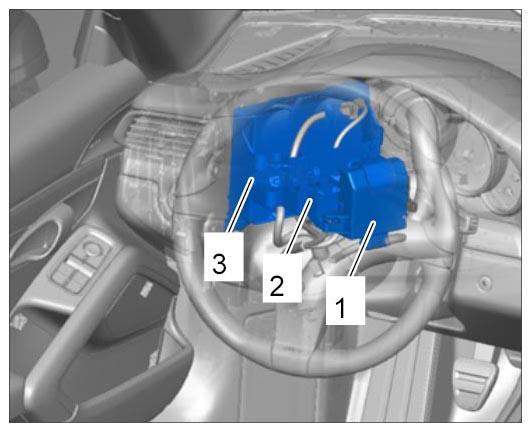

Fig 1: Identifying Gateway Control Unit Installation Position
G10028521Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Gateway control unit
  2. Relay carrier 1
  3. Front-end electronics control unit
