Removing Warning-Light Switch

  1. Unclip warning-light switch -2-  at the retaining frame for the cover -1-  (-arrow A-  ).

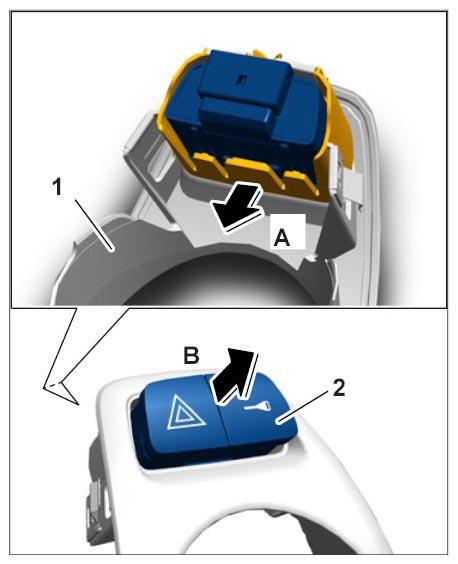

    Fig 1: Removing Warning-Light Switch
    G10028518Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull warning-light switch -2-  out of the retaining frame -arrow B-  .
