Removing Brake Light Switch

  1. Pull the brake light switch -1-  out of the frame -2-  (-arrow A-  ).

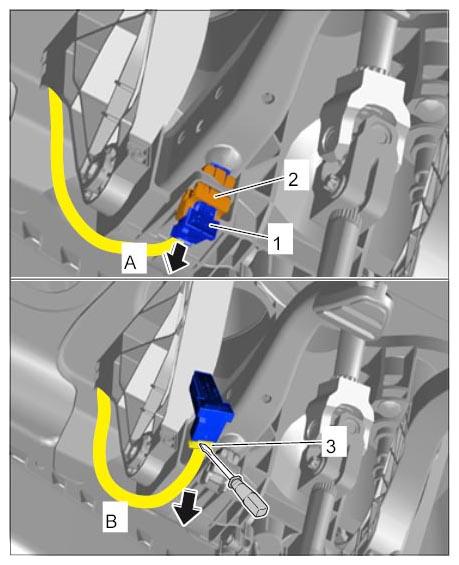

    Fig 1: Removing Brake Light Switch
    G10028514Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric plug connection -3-  using a screwdriver and unplug it -arrow B-  .
  3. Release the frame of the brake light switch -arrow A-  .

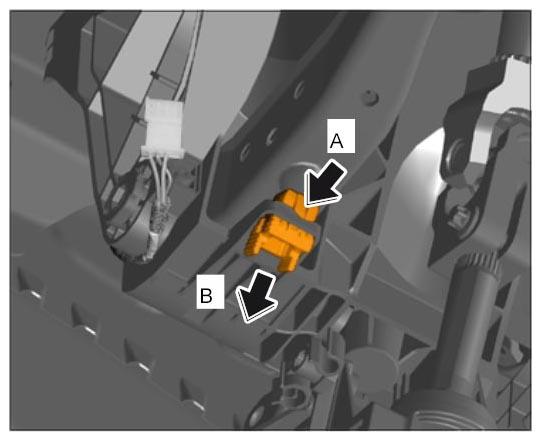

    Fig 2: Removing Frame
    G10028515Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press the frame up and out of the retaining bracket -arrow B-  .
