Adjusting Brake Light Switch
- Make sure that the brake pedal is in the normal position.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Hold brake pedal in one hand and press down on the sensor in the frame with the other until the sensor surface is touching the counter plate on the brake pedal.

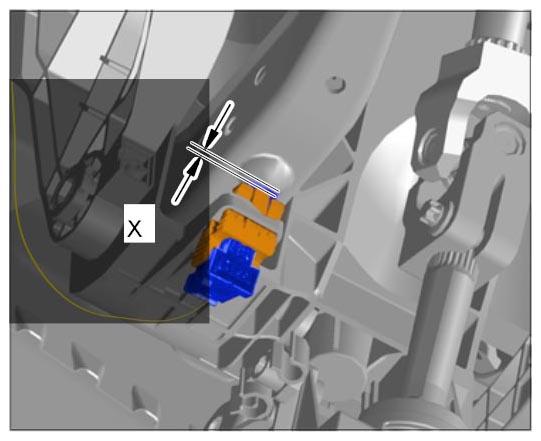

- Press the sensor in the frame back up by one to two notches until the gap between the sensor and the baffle plate has reached the dimension -X-
. A feeler gauge, for example, can be used to adjust the dimension correctly. Adjustment value 1.5 mm +/-0.5 mm
- Perform a function test.
