Installing Main Headlight Switch

  1. Connect plug connection -arrow-  .

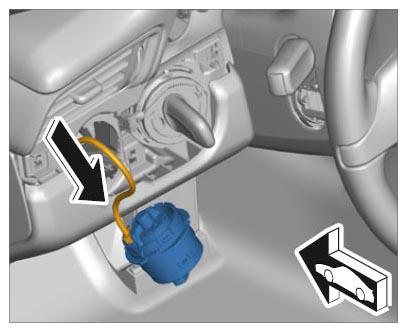

    Fig 1: Connecting Plug Connection
    G10028480Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check that the plug connection is seated securely.
  3. Insert main headlight switch into the cut-out and lock it by turning it -arrows-  .

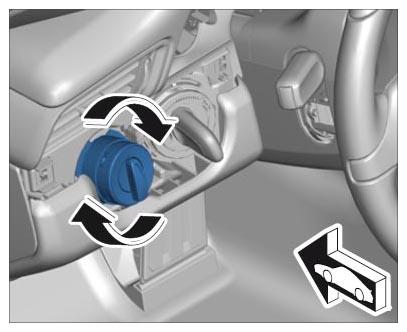

    Fig 2: Installing Main Headlight Switch
    G10028481Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Perform a function test.
