Removing Trim Panel (Steering-Column Switch)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

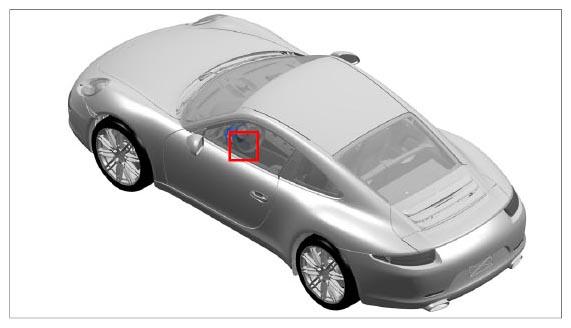

Fig 1: Identifying Steering-Column Switch Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjust steering wheel to lower position.
Unclip upper part of trim panel.

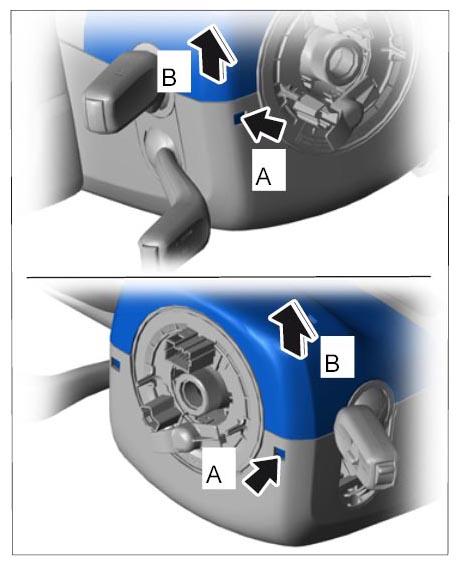

Fig 2: Removing Upper Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Turn steering wheel in such a way that the openings on the front are accessible.
2. 2.2. Release the upper part of the trim panel through the openings on the front panel using a suitable screwdriver -arrows A- and fold it up -arrows B- .
Disconnect plug connections for microphone -arrows- .

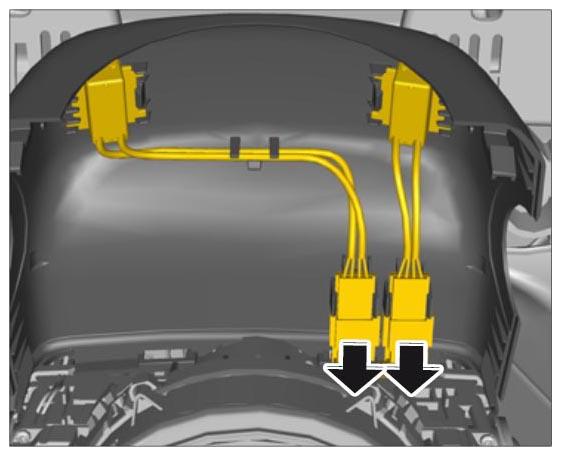

Fig 3: Disconnecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip and remove the upper part of the trim panel on the dust boot -arrows- .

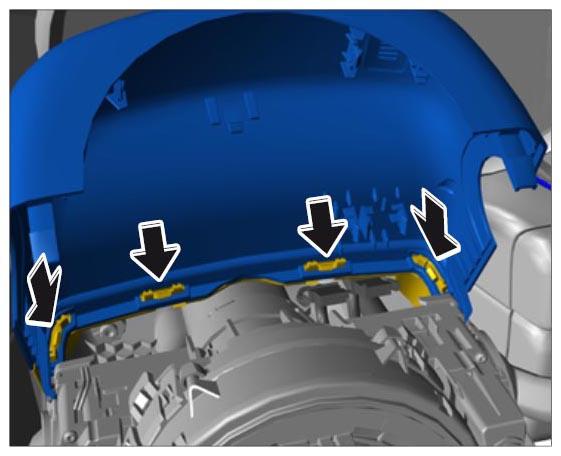

Fig 4: Releasing Dust Boot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening screw -1- on the steering-wheel adjustment handle -2- . (Mechanical steering-wheel adjustment only)

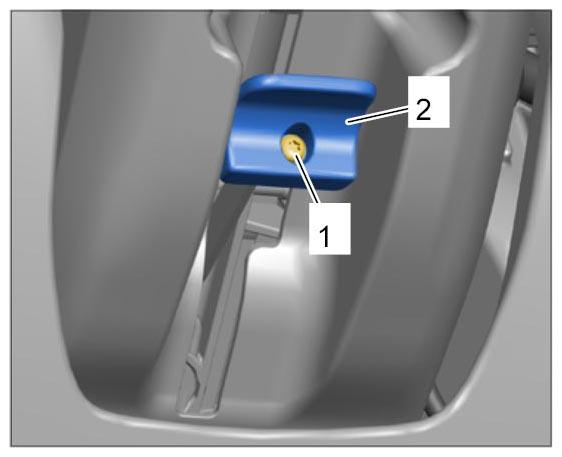

Fig 5: Identifying Steering-Wheel Adjustment Handle Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the lower part of the trim panel.
1. 6.1. Unscrew the fastening screws -1- in the lower part of the trim panel -2- .

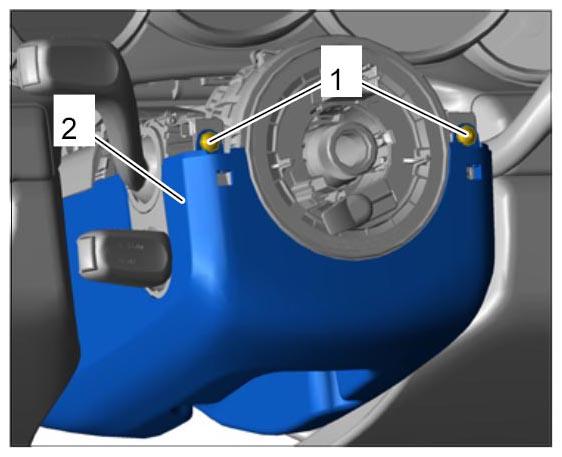

  Fig 6: Identifying Lower Part Of Trim Panel Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Turn the steering wheel in such a way that the fastening screws -1- on the front are accessible.

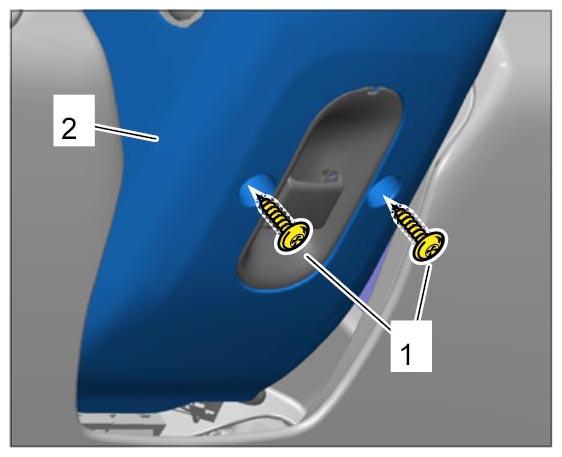

  Fig 7: Identifying Steering Wheel Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 6.3. Unscrew the fastening screws -1- in the lower part of the trim panel -2- .
Remove the lower part of the trim panel.

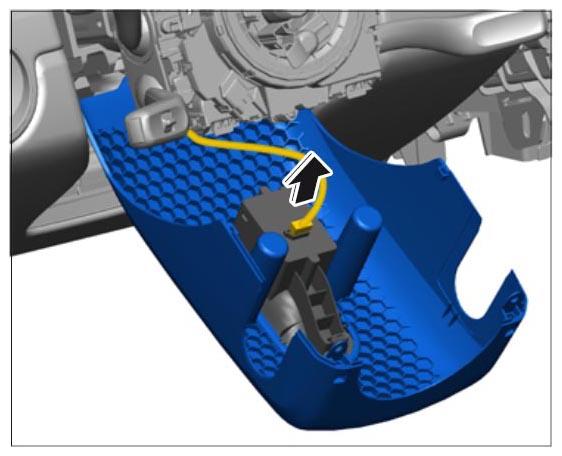

Fig 8: Removing Lower Part Of Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Fold the lower part of the trim panel downwards.
2. 7.2. Unlatch and pull off the plug connection -arrow- .
3. 7.3. Remove the lower part of the trim panel.
