Removing Steering Wheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Immediately after unscrewing the fastening screw and before removing the steering wheel, it is essential to mark the position of the steering wheel and steering column -2- .

During re-installation, this ensures that the steering wheel as well as the airbag spring are fitted back in the same position on the steering column.

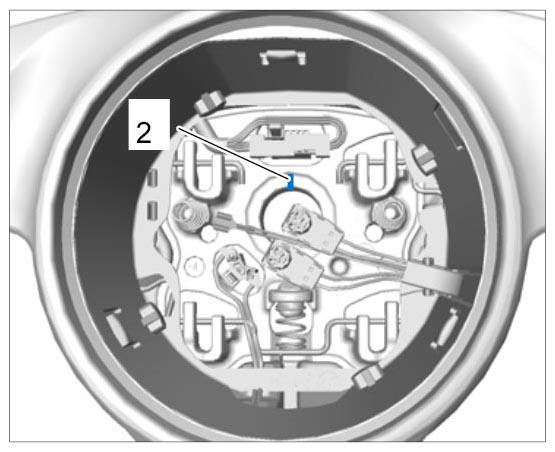

Fig 1: Identifying Marking Position Of Steering Wheel And Steering Column

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turn wheels to straight-ahead position.
Information
- Always release and disconnect the plug connections for steering wheel heater cables and airbag cables before removing the steering wheel.
If the vehicle has a heated steering wheel: Release plug connection for heated steering wheel -1- and pull it off.

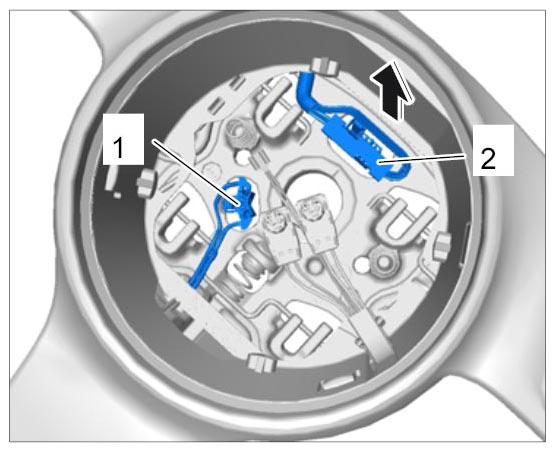

Fig 2: Pulling Off Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and pull off plug connection for airbag wiring harness -2- .
Unscrew fastening screw -1- using the polygon wrench insert Nr.32 .

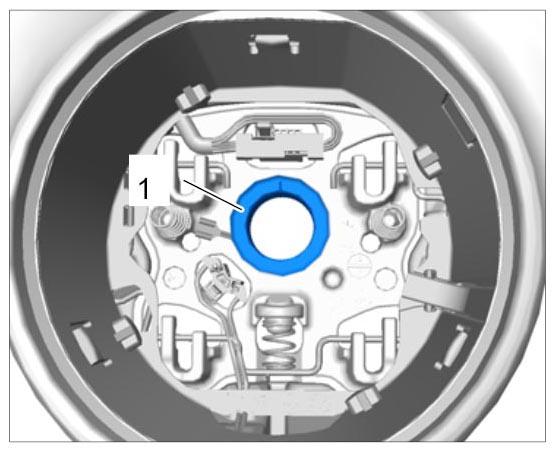

Fig 3: Identifying Multiple-Tooth Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark position of steering wheel.
Remove steering wheel.
