Removing Rear Anti-Roll Bar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Undo the connecting rod (suspension/stabilizer) from the anti-roll bar on both sides of the vehicle. Counter the internal Torx while doing so.

Fig 1: Removing Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo the four screws -3- on the anti-roll bar clamps -1 and 2- and remove the anti-roll bar.
Turn the anti-roll bar as required and remove it in a downwards direction.

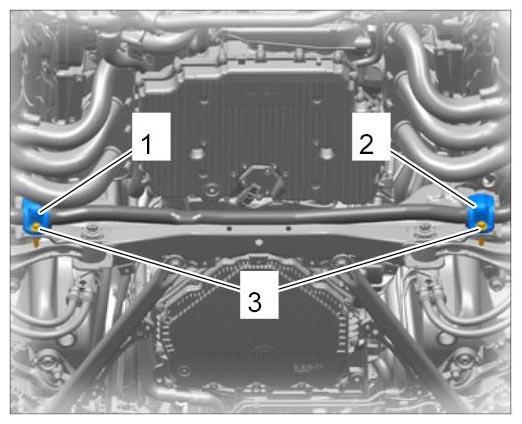

Fig 2: Identifying Rear Axle Cross Member Anti-Roll Bar Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
