Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle at the prescribed jacking points.
→ 4X00IN LIFTING THE VEHICLE .
1. 1.1. Depending on the type of lifting platform used, access ramps 9453 may be required.
Remove support plate.
→ 421419 REMOVING AND INSTALLING SUPPORT PLATE .
Remove cover for rear underbody.
→ 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY .
Remove diagonal braces -1- .
1. 4.1. Unscrew two hexagon-head bolts (M12 x 45) -2- at the rear.
2. 4.2. Unscrew two internal serration screws (M8 x 30) -3- and remove braces.
3. 4.3. Unscrew two hexagon-head bolts (M12 x 40) -4- and washer at the front.

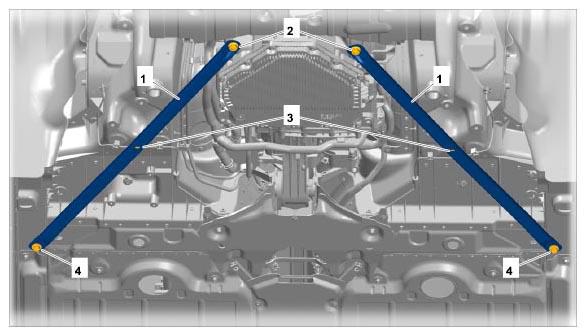

  Fig 1: Identifying Rear Anti-Roll Bar Diagonal Braces
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
