Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Coupe: Install trim panel over spring-strut mount.
→ 708519 REMOVING AND INSTALLING REAR ROOF TRIM PANEL .

→ 705319 REMOVING AND INSTALLING REAR COVER .
Cabriolet: Position strut -1- and tighten fastening screws -arrows- to 46 Nm (34 ftlb.).
Install trim panel for convertible top compartment and rear.

→ 700819 REMOVING AND INSTALLING TRIM PANEL FOR CONVERTIBLE TOP COMPARTMENT .

→ 705319 REMOVING AND INSTALLING REAR COVER .

Move convertible top out of service position.

→ 6101IN CONVERTIBLE-TOP SERVICE POSITION .

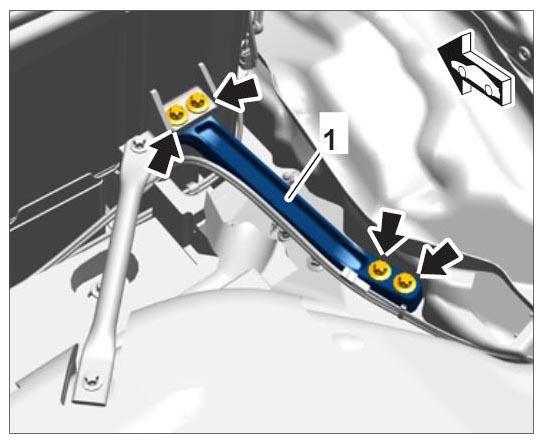

Fig 1: Locating Strut Screws (Cabriolet)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Targa: Position strut and tighten fastening screws -arrows- to 46 Nm (34 ftlb.).

Fig 2: Locating Strut Screws (Targa)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position upper strut -2- and tighten fastening nut -1- .

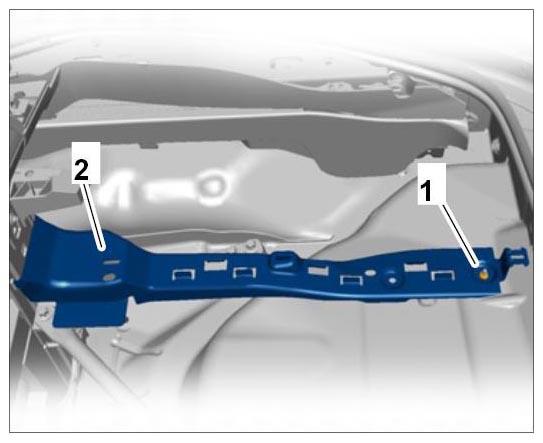

Fig 3: Identifying Upper Strut Nut (Targa)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install trim panel for convertible top compartment. → 700819 REMOVING AND INSTALLING TRIM PANEL FOR CONVERTIBLE TOP COMPARTMENT (TARGA)
Close rear window.
Fit wheel.
→ Installing Wheel .

→ Installing Wheel With Central Bolt .
Check rear-axle toe and make adjustments if necessary.
→ 449503 SUSPENSION ALIGNMENT, COMPLETE .

→ 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .
