Removing Rear-Axle Cross Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

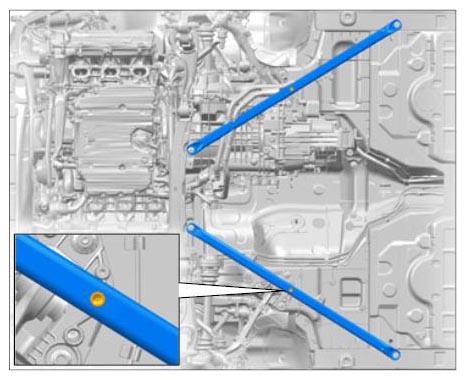

Remove diagonal braces. Multiple-tooth screws in the middle -inset- .

Fig 1: Identifying Rear-Axle Cross Member Diagonal Braces
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

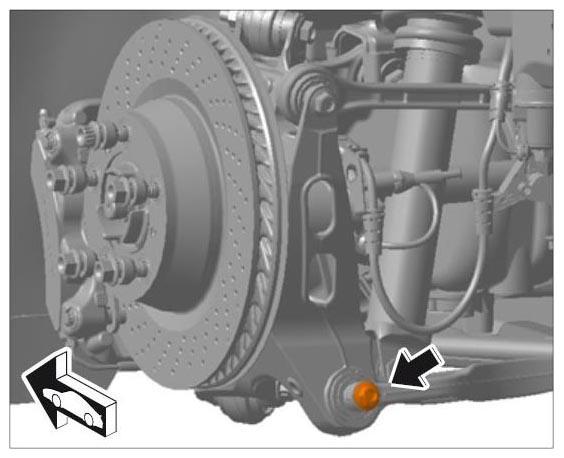

Remove lower trailing arm -arrow- from the wheel bearing housings on the left/right side.

Fig 2: Locating Trailing Arm Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

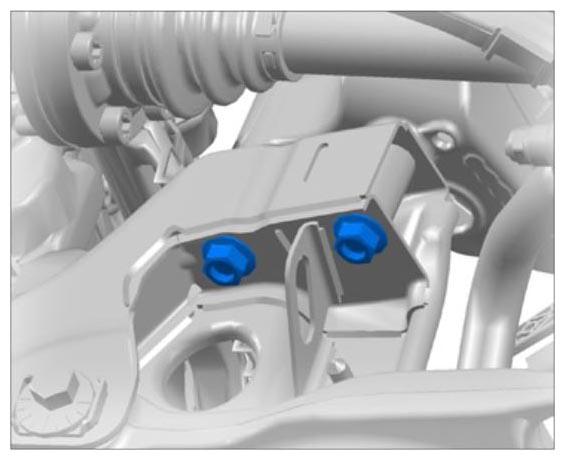

Remove connecting link at the left/right side or PDCC actuator from the anti-roll bar.

Fig 3: Identifying Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

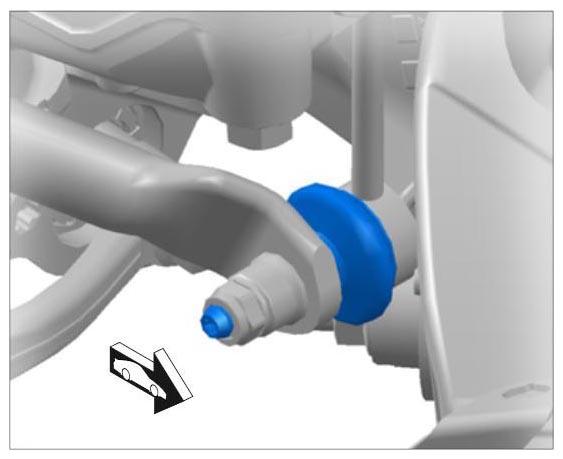

Loosen threaded joint on the rear-axle cross member on both sides (right side shown).

Fig 4: Identifying Rear-Axle Cross Member Threaded Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear-axle cross member with anti-roll bar and lower trailing arms can now be removed.
