Installing Brake Light Switch: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
The brake light switch sensor works without contact.
For the switch to work correctly, there must be a specified air gap between the sensor and the baffle plate on the brake pedal.
The baffle plate must not touch the sensor.
When installing, make sure that the brake pedal is in the normal position.

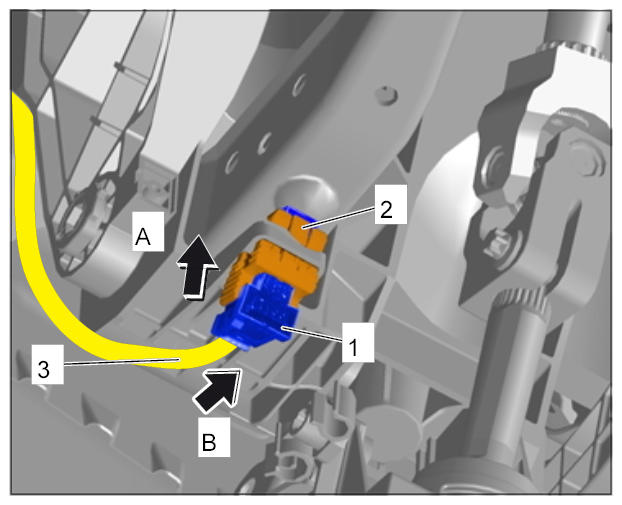

- Before installing, press the brake light switch -1- out of the frame -2- until the underside is flush with the frame.
- Insert the brake light switch -1- with the frame -2- into the retaining bracket from above -arrow A- until the frame's retaining clip latches securely in the retaining bracket.
- Plug in the electric plug connection -3- -arrow B- .
