Removing LED Module Fan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew fastening screws -1- .
Remove rear cover -2- from headlights.

Fig 1: Removing Rear Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off electric plug connection -3- .
Unscrew fastening screw -4- .
Remove LED module fan -5- from holder -6- .
1. 5.1. Release locking lugs in direction of arrow.
2. 5.2. Carefully take LED module fan -5- upwards out of holder -6- .

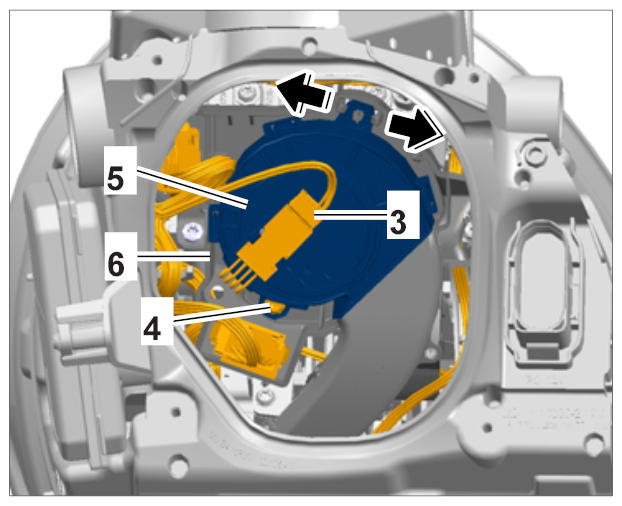

  Fig 2: Removing LED Module Fan
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
