Removing Brake Booster

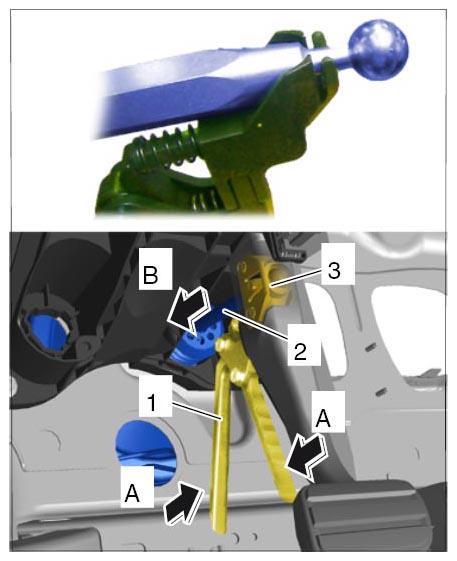

1. 1.1. Unlocking Tool 9767 -1-  must be guided from below in front of the ball joint on the push rod -2-  .
2. 1.2. Press the unlocking tool together -arrows A-  and separate the ball joint from the securing clip -3-  (-arrow B-  ).

Fig 1: Disengaging Push Rod From Brake Booster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

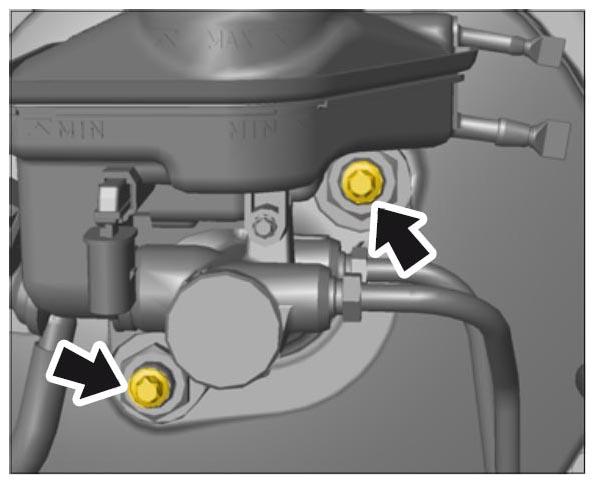

Shown as an example as the brake master cylinder is already removed at this time.

Fig 2: Identifying Brake Booster Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

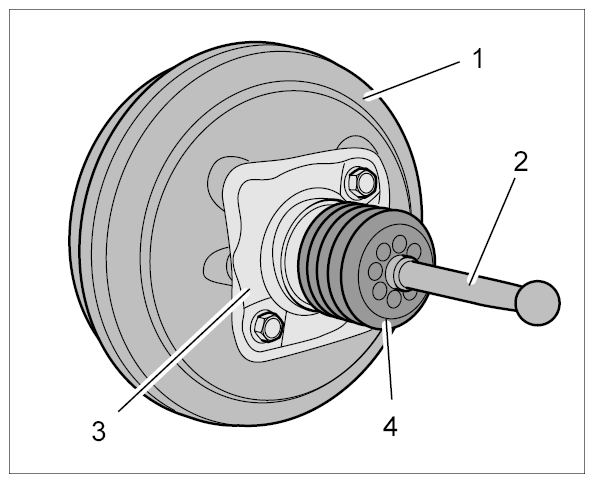

When removing and fitting the brake booster -1-  , make sure not to damage the boot -4-  on the push rod -2-  .

The seal between the brake booster and body -3-  must always be replaced.

Fig 3: Identifying Brake Booster Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1.1. Unlocking Tool 9767 -1-  must be guided from below in front of the ball joint on the push rod -2-  .
2. 1.2. Press the unlocking tool together -arrows A-  and separate the ball joint from the securing clip -3-  (-arrow B-  ).

Fig 1: Disengaging Push Rod From Brake Booster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shown as an example as the brake master cylinder is already removed at this time.

Fig 2: Identifying Brake Booster Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The seal between the brake booster and body -3-  must always be replaced.

When removing and fitting the brake booster -1-  , make sure not to damage the boot -4-  on the push rod -2-  .

Fig 3: Identifying Brake Booster Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
