Bleeding The Brake System

Information

• Observe brake fluid quality. Use only new DOT 4 brake fluid  .
• This brake fluid is available under the following part numbers: Quantity supplied: 1 litre = 000.043.203.66; 30 litres = 000.043.203.67  .
• There are two bleeder valves on the brake calliper. Brake fluid must be drained at both bleeder valves. Observe specified sequence: Bleed the outer bleeder valve first  .

1. Place cover in service position.

   Unclip the cover at the left and right, lift it up and engage the yellow support in the luggage compartment lid -1-  to secure it.

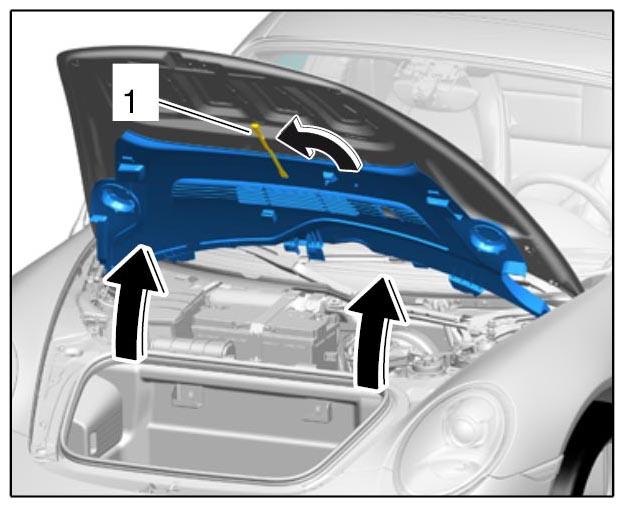

   Fig 1: Placing Cover In Service Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Open the cap on the reservoir.

   Connect a bleeding device to the brake fluid reservoir.

   Switch on the bleeding device. Bleeding pressure is approx. 2.0 bar.

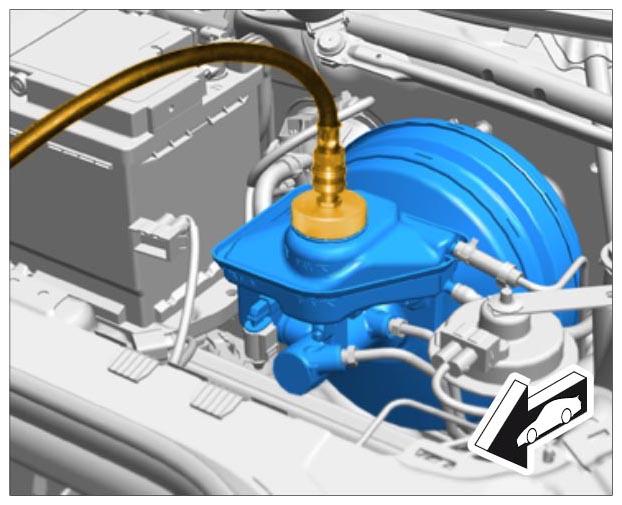

   Fig 2: Connecting Bleeding Device To Reservoir

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Continue the bleeding procedure at the brake callipers (no prescribed sequence).

   Use a transparent hose and a collecting bottle to check the escaping brake fluid for cleanliness, absence of air bubbles and to determine the amount of brake fluid used.

   Open each bleeder valve until clear, bubble-free brake fluid emerges.

   Continuously pump the brake pedal slowly during the bleeding process (second mechanic required).

4. Only When Replacing The Hydraulic Unit:  Bleed the secondary circuit using PIWIS Tester II 9818  . Otherwise, continue with the concluding steps (Steps 5 and  6).
   1. 4.1. Select >>PSM>>Maintenance/repairs>>Bleeding hydraulic unit<< in the control unit overview.

      The four wheel brakes are bled alternately (as per Tester display).

   2. 4.2. Remove vent hoses and tighten bleeder valves to 14 Nm (10.5 ft. lbs.).
   3. 4.3. Remove PIWIS Tester II.
5. Switch off the bleeding device and remove the adapter at the reservoir.

   Visually check the brake fluid level.

   The brake fluid level must be between the MIN and MAX markings.

   Correct the brake fluid level if necessary.

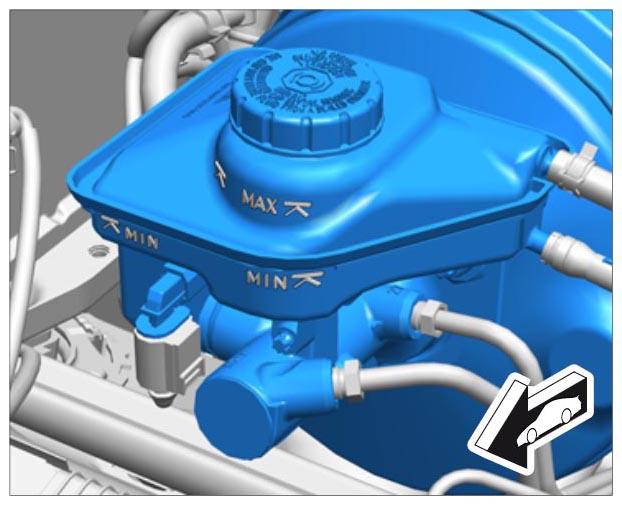

   Fig 3: Identifying Min/Max Markings For Brake Fluid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit cover over the brake fluid reservoir (move out of service position).
