Removing Spreader Device

The spreader device (actuator) is located on the rear-axle wheel bearing housing instead of the mechanical spreader device with the parking-brake cable.

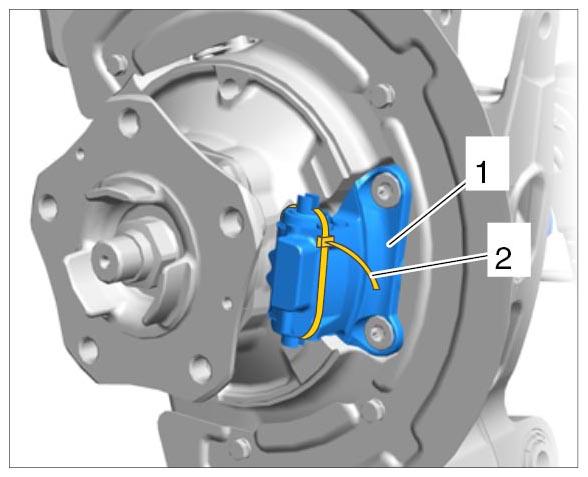

1. Actuator
2. Tie-wrap - prevents twisting
   Fig 1: Identifying Actuator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

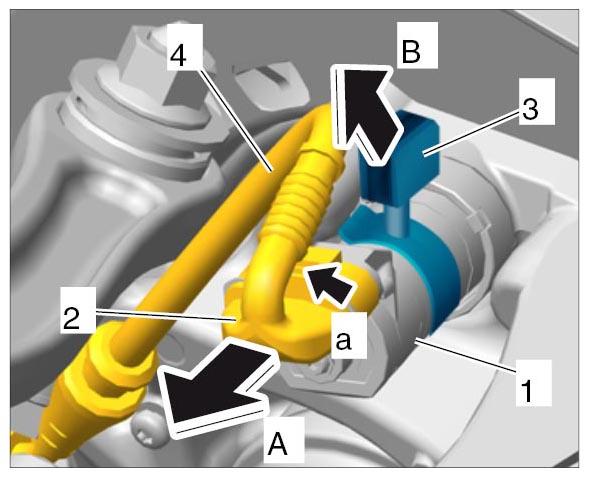

1. Release electric plug connection -2-  at the actuator -1-  (-a-  ) and pull it off -A-  .

   Unclip wire harness -4-  from the retaining clip -3-  .

   Fig 2: Releasing Electric Plug Connection From Actuator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

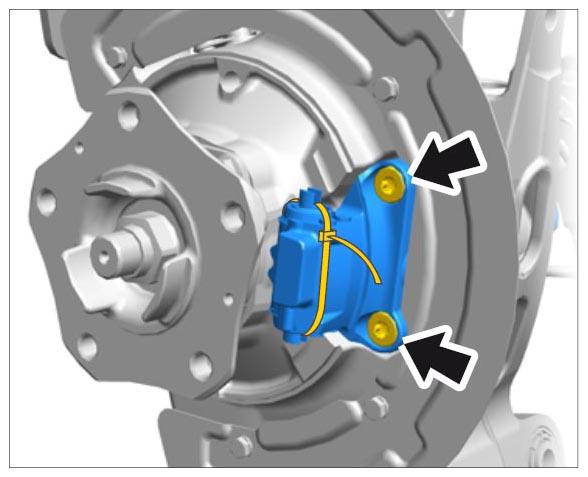

2. If the actuator -1-  has to be re-used, secure it in the brake shoe mountings with a tie-wrap -2-  to prevent it from twisting!
   Fig 3: Identifying Actuator For Parking Brake

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

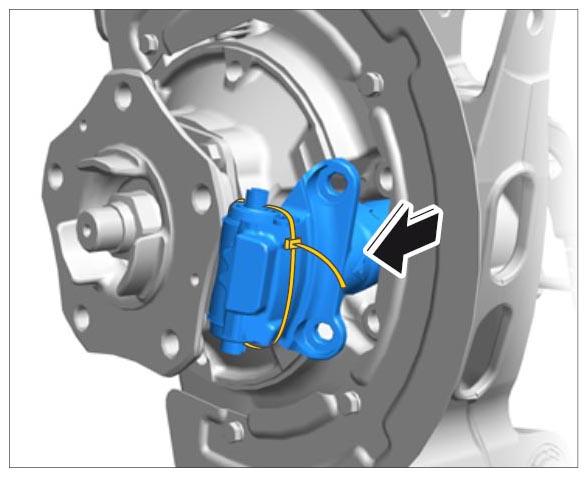

3. Remove fastening screws on the actuator -arrows-  .
   Fig 4: Locating Actuator Mounting Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove fastening screws on the brake cover plate.

   Turn the brake cover plate so that the actuator can be removed -arrow-  .

   Fig 5: Removing Actuator
