Removing Parking-Brake Shoes

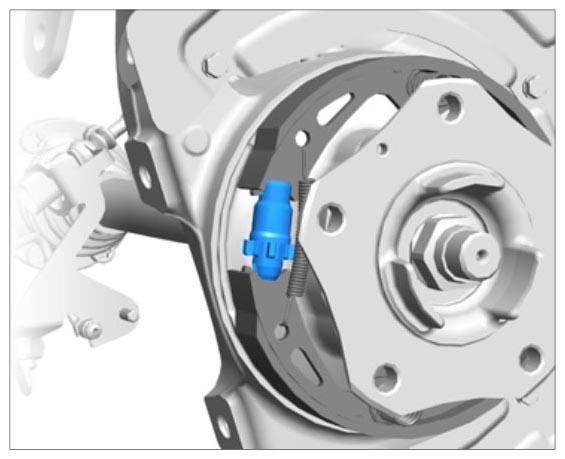

Loosen the adjustment device → Adjustment device for parking-brake shoes with a screwdriver.

Fig 1: Identifying Parking-Brake Shoes Adjustment Device
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

It is not necessary to grind down the parking-brake shoes if the parking-brake shoes are not replaced.

Set the brake shoes to the basic setting if necessary and calibrate the brakes → 468316 ADJUSTING PARKING-BRAKE SHOES .
- Mark the parking-brake shoes and adjustment device according to their installation position .
- Secure the adjustment device to prevent it from turning .
Remove parking-brake shoes -1- .

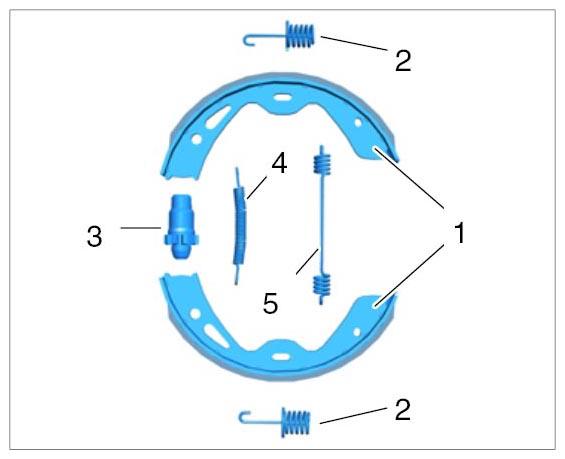

Fig 2: Identifying Brake Shoes Parts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

→ Wear protective gloves and goggles.

→ Be very careful when working on the brake system.
1. 2.1. Remove compression springs -2- .
  To do this, use a crosshead screwdriver to press the compression springs together using a considerable amount of force and turn 90 degrees clockwise.
2. 2.2. Disengage both tension springs -4 and 5- .
3. 2.3. Remove parking-brake shoes -1- using adjustment device -3- .

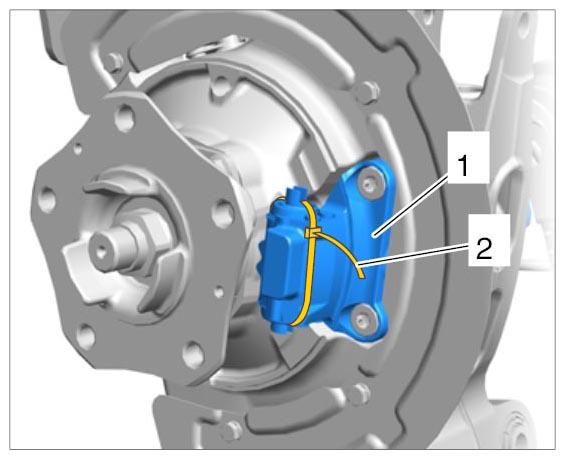

Secure actuator -1- for parking brake with a tie-wrap -2- .

Fig 3: Identifying Actuator (Servo Motor) For Parking Brake
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
