Removing Actuator For Parking Brake

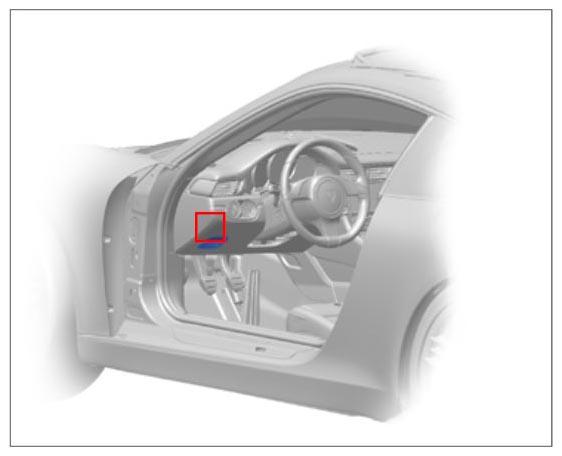

Fig 1: Identifying Actuator Installation Position For Parking Brake
G10026628Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip actuator for parking brake.

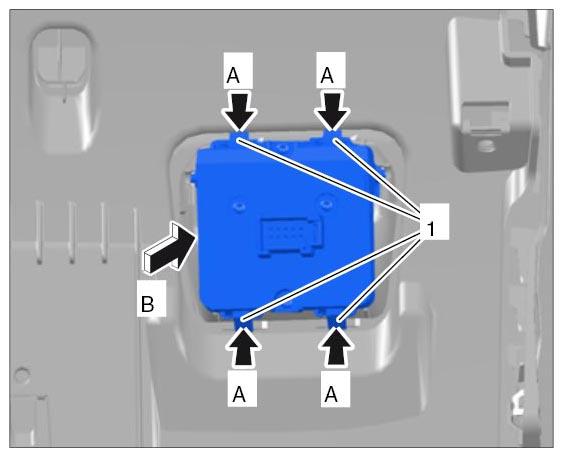

    Fig 2: Removing Actuator For Parking Brake
    G10026629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Press the four retaining clips -1-  and push actuator for parking brake -A-  out of the trim panel -B-  .
