Installing Actuator For Electric Parking Brake

  1. Install actuator in trim panel under the dashboard.

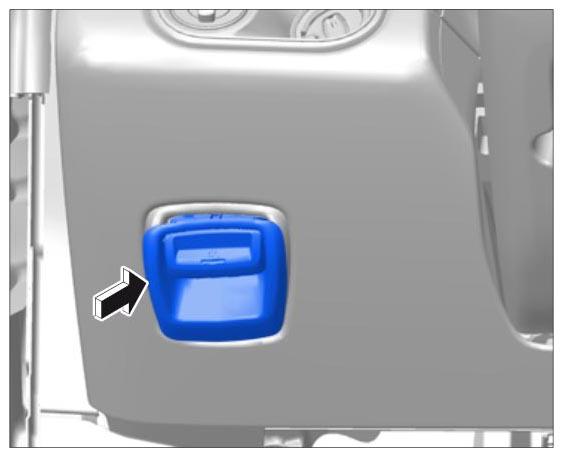

    Fig 1: Installing Actuator For Electric Parking Brake
    G10026630Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Insert actuator in trim panel under the dashboard and clip it in -arrow-  .
    2. 1.2. Check that the actuator is seated securely, clip it in again if necessary and bend up the retaining clips slightly.
