Removing Glove Compartment Light

  1. Press glove compartment light carefully out of the glove compartment trim panel at the cut-out -A-  using a screwdriver.
    Fig 1: Removing Glove Compartment Light
    G10028620Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric plug connection for the glove compartment light -a-  and disconnect it -arrow-  .

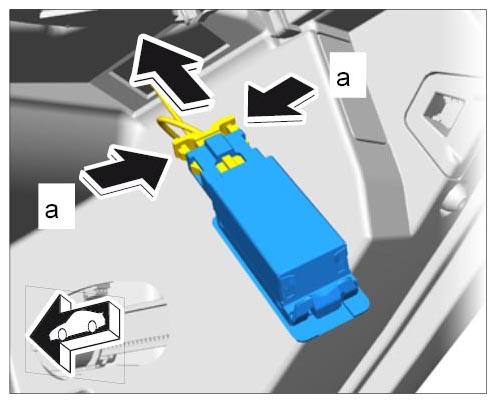

    Fig 2: Releasing Electric Plug Connection For Glove Compartment Light
    G10028621Courtesy of PORSCHE CARS NORTH AMERICA, INC.
