Removing Footwell Light

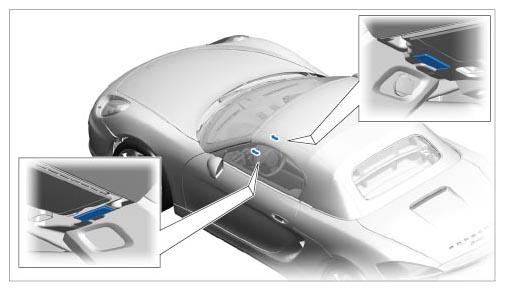

Fig 1: Identifying Footwell Lights Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press footwell light carefully out of the trim panel at the cut-out -A- using a screwdriver.

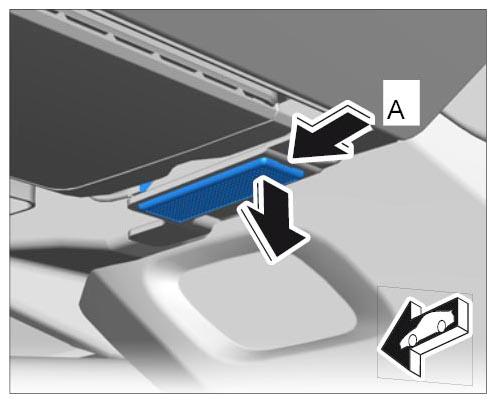

Fig 2: Unclipping Footwell Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unplug electric plug connection -arrow- for footwell light.

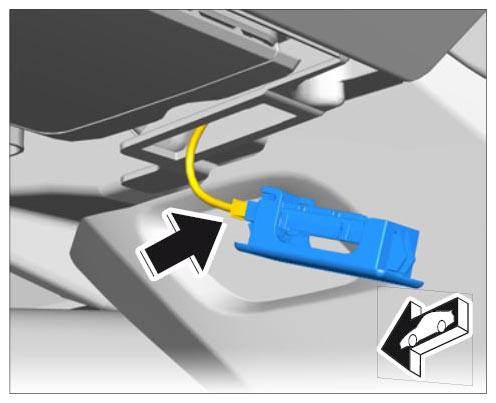

Fig 3: Unplugging Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
