Removing Auxiliary Headlight

  1. Release electric plug connection -1-  and pull it off the auxiliary headlight -3-  .

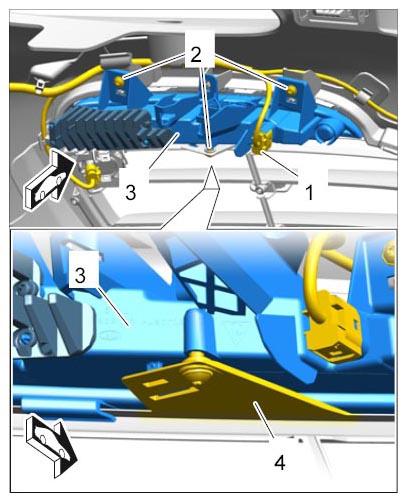

    Fig 1: Removing Auxiliary Headlight
    G10028566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  on the auxiliary headlight -3-  .
  3. Unclip auxiliary headlight -3-  at the bracket -4-  on the front apron and remove auxiliary headlight -3-  .
