Installing Auxiliary Headlight

  1. Clip auxiliary headlight -3-  into the bracket -4-  on the front apron.

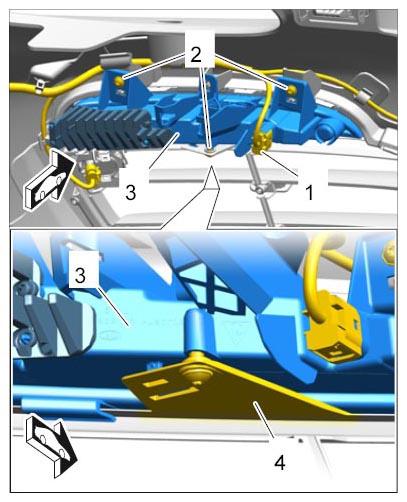

    Fig 1: Installing Auxiliary Headlight
    G10028567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in fastening screws -2-  on the auxiliary headlight -3-  .
  3. Plug in electric plug connection -1-  on the auxiliary headlight -3-  until the electric plug connection -1-  engages securely.
