Replacing Gas-Discharge Headlight

  1. Unscrew the two fastening screws -arrows-  on the headlight cover and remove the headlight cover -A-  .

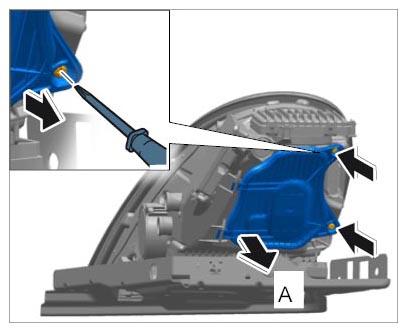

    Fig 1: Removing Headlight Cover
    G10028548Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unplug the connector on the gas-discharge headlight -arrow-  .

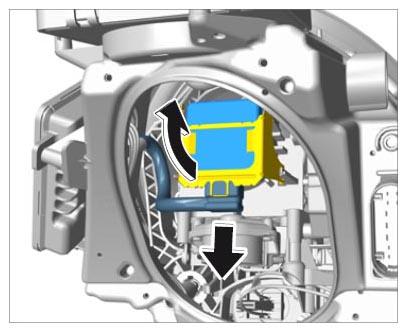

    Fig 2: Removing Gas-Discharge Cornering Light
    G10028549Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release and open the retaining bow -arrow-  .
  4. Pull out gas-discharge headlight.
  5. Install the new gas-discharge headlight.
  6. Close the retaining bow and clip it into the two mounting points.
  7. Plug electric connector for the gas-discharge headlight in fully.
  8. Fit the headlight cover and secure with the two fastening screws.
