Installing Tail Light

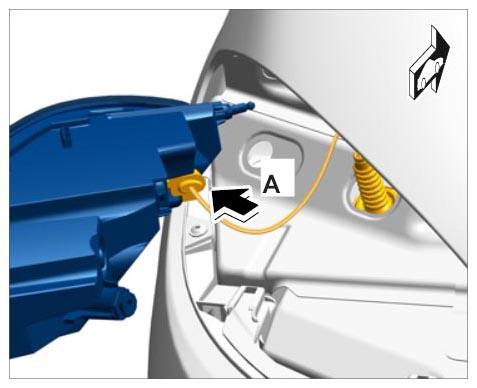

- Connect electric plug connection -arrow A-
until the lock engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pre-position the tail light -1-
so that the T-bolts run into the guide rails.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

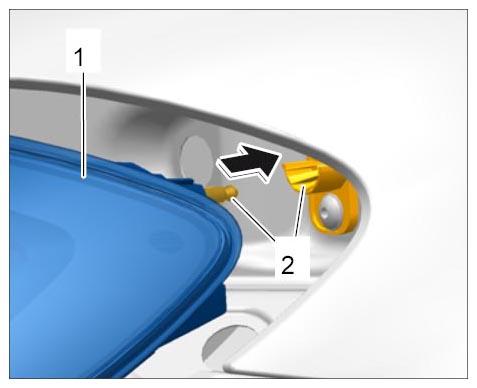

- Slide in tail light -1-
until the catch -2-
locks securely.

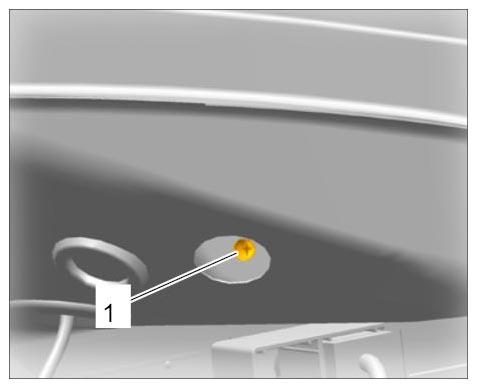

- Fit fastening screw -1-
for the tail light and tighten to Tightening torque 2.0 Nm (1.5 ftlb.) +/-0.2 Nm (+/-0.1 ftlb.)
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

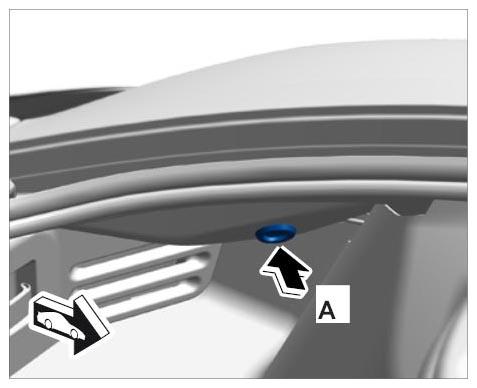

- Fit rubber stopper in the rear luggage compartment -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

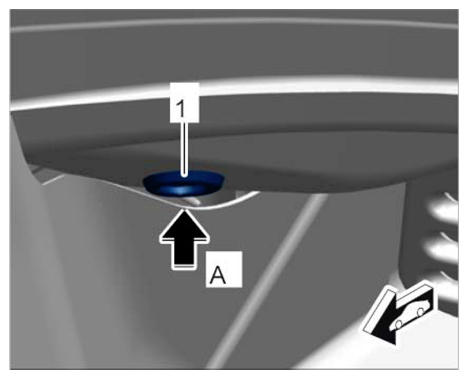

- Fit rubber stopper -1-
in the wheel housing -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
