Installing Oil Pan

Information

The tightening specifications for the basic engine are stored centrally.

> Refer to 1X00IN Technical values in the appropriate service information.

/

> Refer to 2X00IN Technical values in the appropriate service information.

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Information

• When installing the oil pan, make sure that all sealing faces are free of oil and grease.

1. Replace oil sump gasket.
2. Replace seal on oil drain plug.
3. Fit the oil pan -1-  and screw in fastening screws -5-  by hand. Align and tighten oil pan.

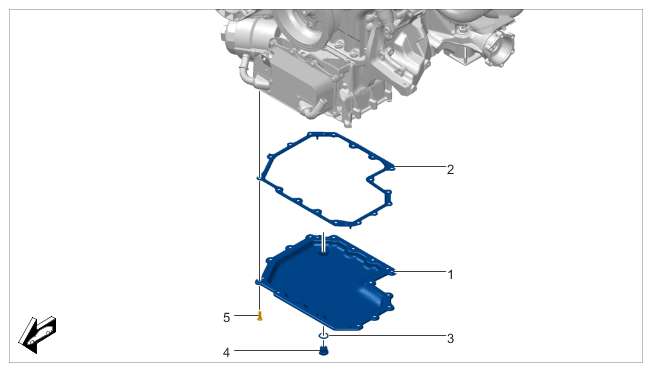

   Fig 1: Oil Pan Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil pan

   1	Oil pan
   2	Seal
   3	Seal
   4	Oil drain plug, M18; aluminum screw; re-usable
   5	Screw, M6 x 20
