Component Overview

Information

The oil pressure control valve is located on the right side of the oil guide housing, at the front next to the oil filter.

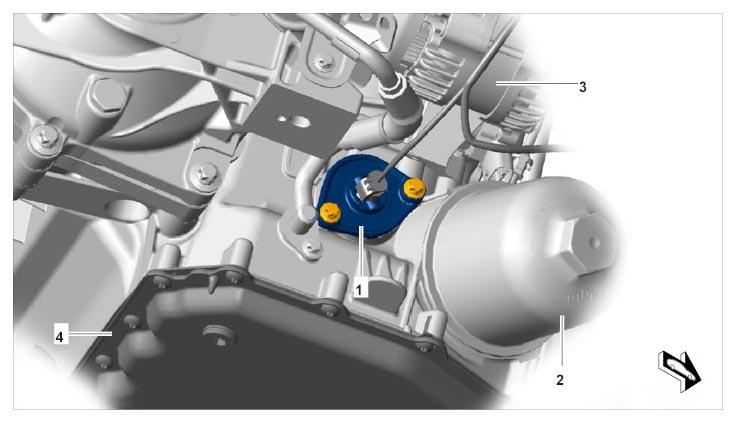

Fig 1: Identifying Oil Pressure Control Valve Flange, Engine Oil Filter, Generator, Oil Pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Oil pressure control valve flange
2. Engine oil filter
3. Generator
4. Oil pan

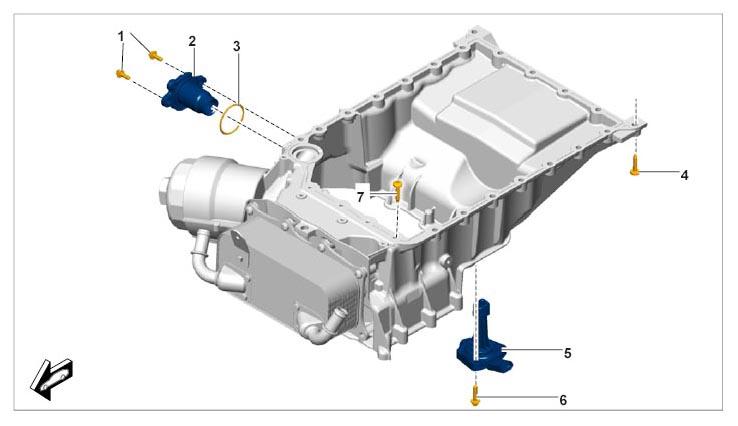

Fig 2: Identifying Oil Guide Housing With Accessories

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Screw, M6 x 20
2. Joint flange
3. Sealing ring
4. Oil guide housing to lower part of crankcase - aluminum screw  ; always use new aluminum screws
5. Oil level sensor
6. Oil level sensor to oil guide housing (steel screw)
7. Timing-case cover to oil guide housing - aluminum screw  ; always use new aluminum screws

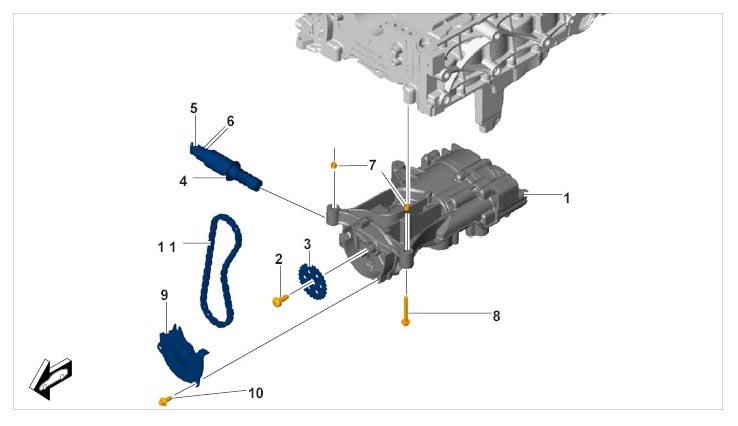

Fig 3: Identifying Oil Pump Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Oil pump
2. Screw, M8 x 22; replace
3. Oil pump sprocket
4. Cap screw, M36
5. Solenoid valve (oil pressure control valve)
6. Sealing rings (grease before fitting)
7. Dowel sleeve
8. Screw, M6 x 45
9. Sprocket cover
10. Screw, M6 x 16
11. Drive chain

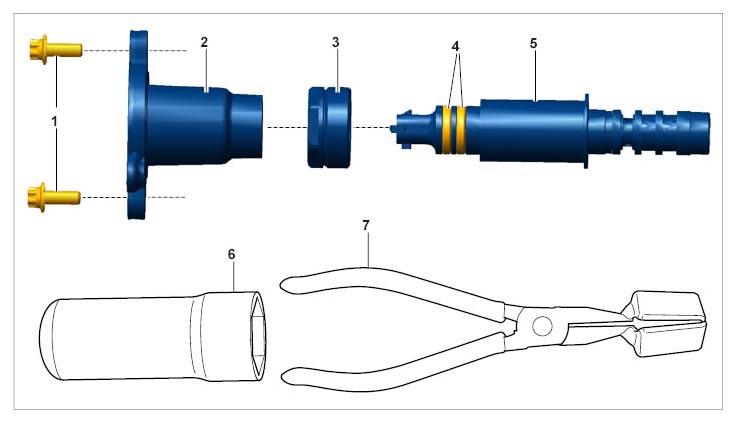

Fig 4: Identifying Oil Pressure Control Valve And Tool

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Screw, M6 x 20
2. Joint flange with sealing ring
3. Cap screw, M36
4. Oil sealing ring with engine oil
5. Solenoid valve/oil pressure control valve
6. Special socket socket-wrench insert 9753
7. Puller relay puller 9235
