Component Overview

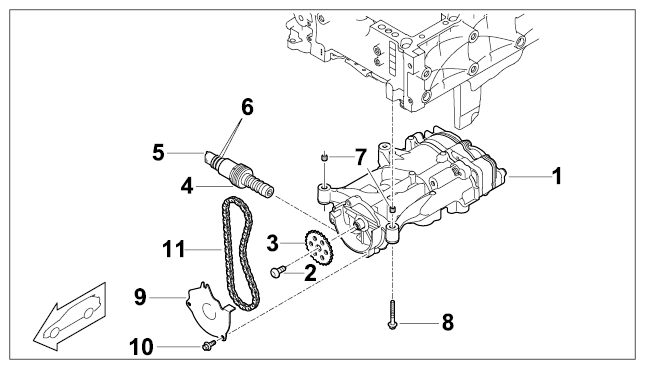

Fig 1: Identifying Oil Pump, Turbo Engine Components
G09804863Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil pump with extraction stage
  2. Screw, M8 x 22; replace
  3. Oil pump sprocket
  4. Cap screw, M36
  5. Solenoid valve
  6. Sealing rings (grease before fitting)
  7. Dowel sleeve
  8. Screw, M6 x 45
  9. Sprocket cover
  10. Screw, M6 x 16
  11. Drive chain

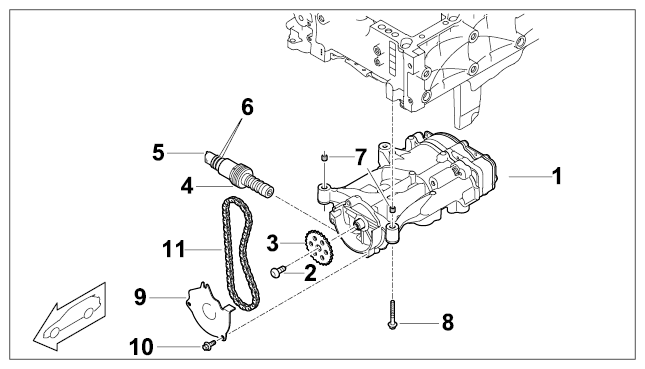

Fig 2: Identifying Oil Pump Components (Naturally Aspirated Engine)
G09804864Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil pump
  2. Screw, M8 x 22; replace
  3. Oil pump sprocket
  4. Cap screw, M36
  5. Solenoid valve
  6. Sealing rings (grease before fitting)
  7. Dowel sleeve
  8. Screw, M6 x 45
  9. Sprocket cover
  10. Screw, M6 x 16
  11. Drive chain

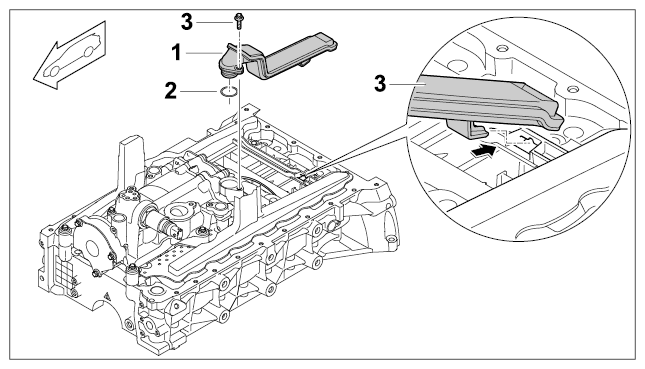

Fig 3: Identifying Suction Tube For Auxiliary Sump Components
G09804865Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Suction tube for auxiliary sump
  2. Sealing ring
  3. M6 screw
  1. 3  - View of click position
