Tools For Cooling System

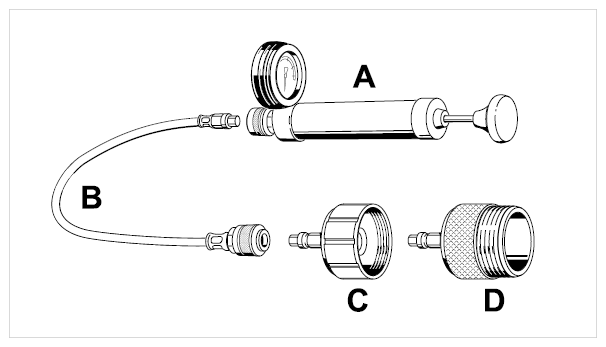

Fig 1: Identifying Cooling System Tools
G09805056Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A-  - Cooling system leak tester (pump) Cooling system tester WE 1069
  2. -B-  - Hose extension FZ 100
  3. -C-  - Cap adapter K22 (for Sports Cars)
  4. -D-  - Cap adapter K65 (supplied with filling device 9696  )

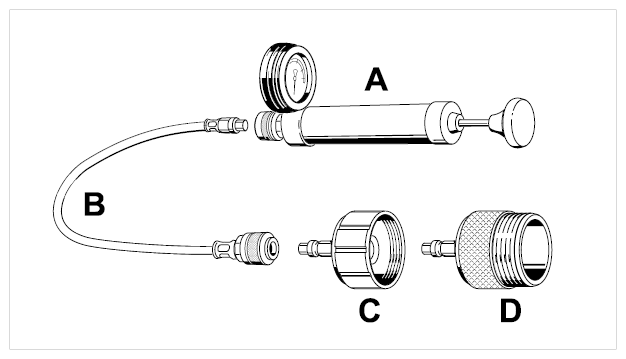

Fig 1: Locating Cooling System Tools
G09805063Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A-  - Cooling system leak tester (pump) Cooling system tester WE 1069
  2. -B-  - Hose extension FZ 100
  3. -C-  - Cap adapter K22 (for Sports Cars)
  4. -D-  - Cap adapter K65 (supplied with filling device 9696  )
