Removing Compressor Control Flap

  1. Loosen fuel pipe fastening points -arrows-  . Do not disconnect fuel hoses.

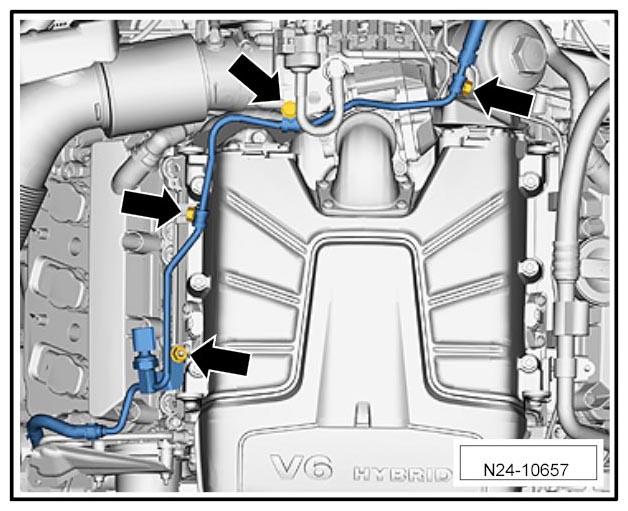

    Fig 1: Loosening Fuel Pipe Fastening Points
    G09805591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove compressor control flap.
    1. 2.1. Pull electric plug connection -3-  off the compressor control flap.
    2. 2.2. Remove screws -5-  and -6-  .
    3. 2.3. Remove connecting tube -1-  with adapter (intermediate flange) -2-  and compressor control flap -4-  .

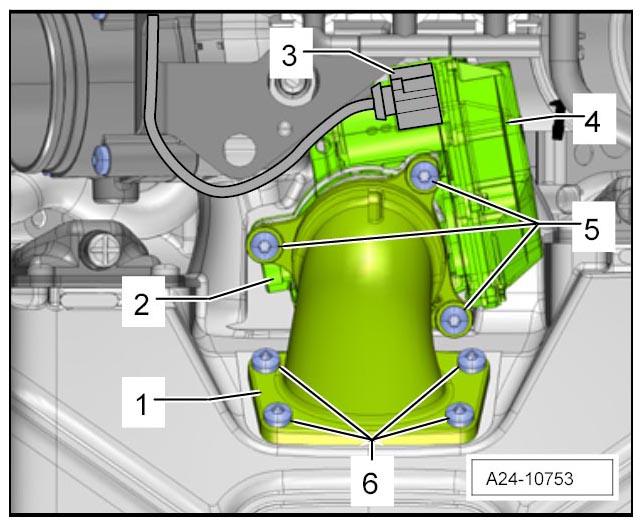

      Fig 2: Identifying Compressor Control Flap
      G09805592Courtesy of PORSCHE CARS NORTH AMERICA, INC.
