Installing Rear Lid

  1. Place lid in installation position (another person is needed to prevent the rear lid from closing accidentally).
  2. Tighten fastening screws to the specified tightening torque Tightening torque 23 Nm (17 ftlb.) -1-  until secure.

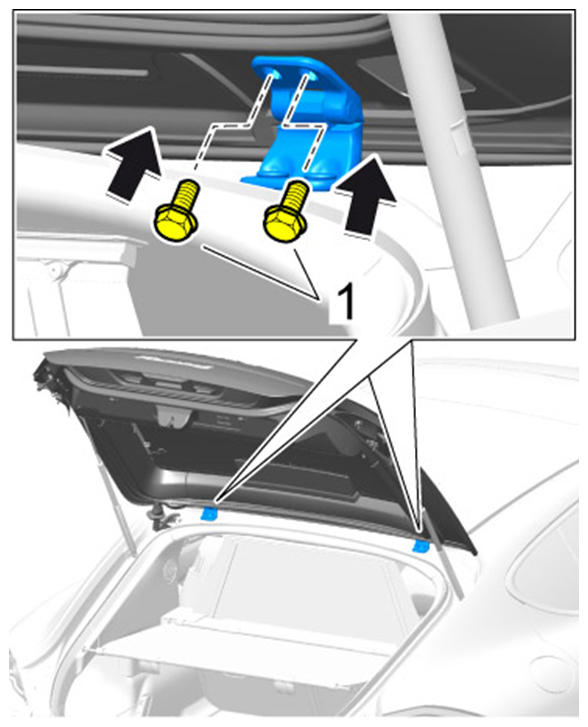

    Fig 1: Installing Rear Lid
    G09810238Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Secure pneumatic spring at the top (another person is needed to prevent the rear lid from closing accidentally). → Securing Rear Pneumatic Spring 559319 REMOVING AND INSTALLING REAR PNEUMATIC SPRING
  4. Install wire harness for actuating cylinder. → Installing Actuating Cylinder For Rear Lid 557319 REMOVING AND INSTALLING ACTUATING CYLINDER FOR REAR LID
  5. Install wire harness. → 972719 REMOVING AND INSTALLING WIRE HARNESS FOR TAILGATE
  6. Install number plate lights. → INSTALLING NUMBER PLATE LIGHT
  7. Install rear lid release. → Installing Release For Rear Lid 555719 REMOVING AND INSTALLING RELEASE FOR REAR LID
  8. Install upper part of lid lock. → Installing Upper Part Of Rear Lid Lock 558719 REMOVING AND INSTALLING UPPER PART OF REAR LID LOCK
  9. Adjust rear lid. → 559015 ADJUSTING REAR LID
