Removing Rear Centre Console

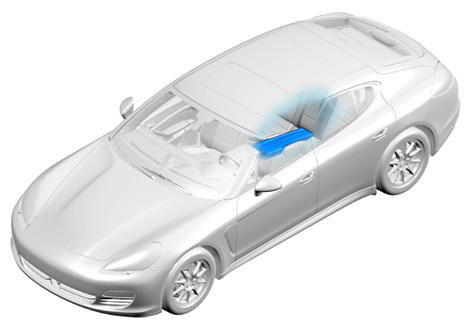

Fig 1: Identifying Rear Centre Console Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

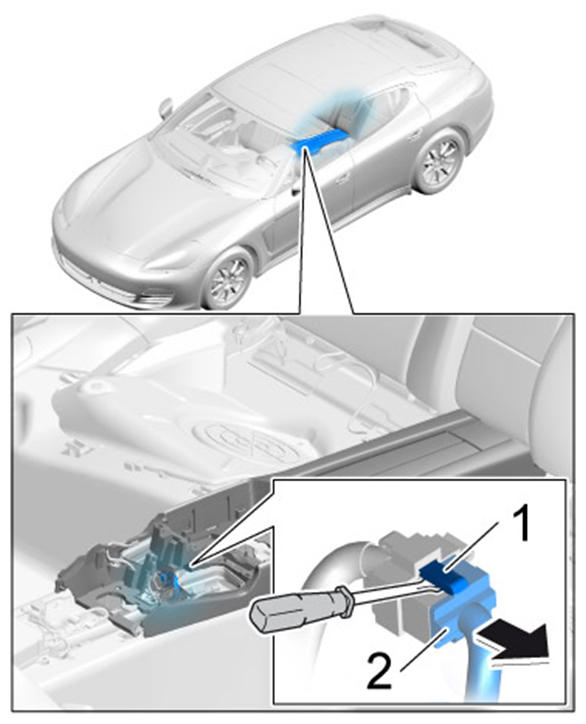

Unclip electric plug connection from the center console bracket. Use a screwdriver to release the catch -1- at the top and bottom and pull off the connector -2- .

Fig 2: Pulling Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

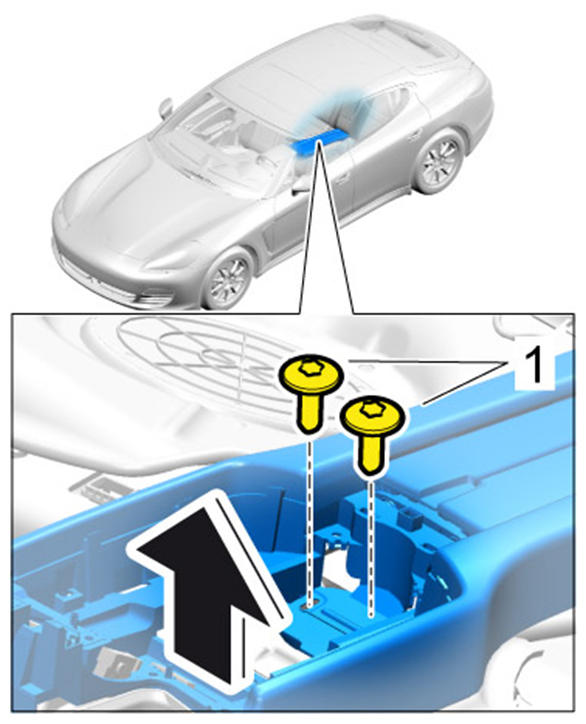

Unscrew fastening screws -1- at the front.

Fig 3: Loosening Screws On Front Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

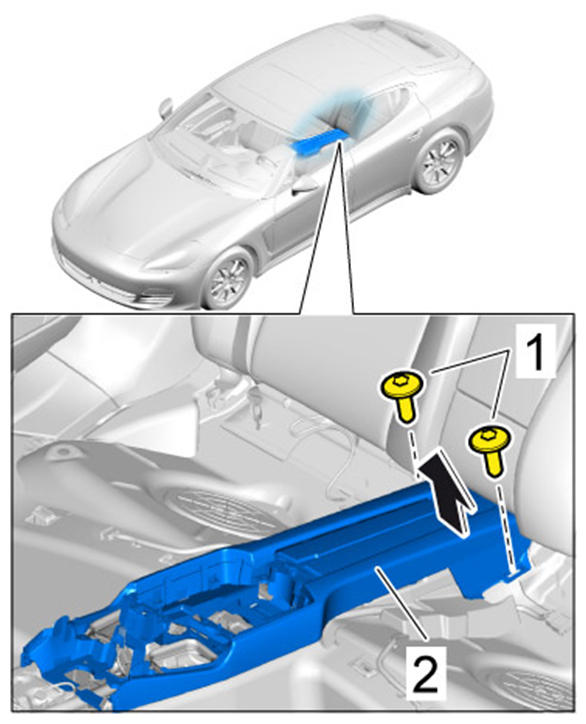

Unscrew fastening screws -1- at the rear and remove center console -2- .

Fig 4: Loosening Screws On Rear Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
