Gap Dimensions Of Sunroof

→

Gap dimension: 0 mm-1 mm (D1)

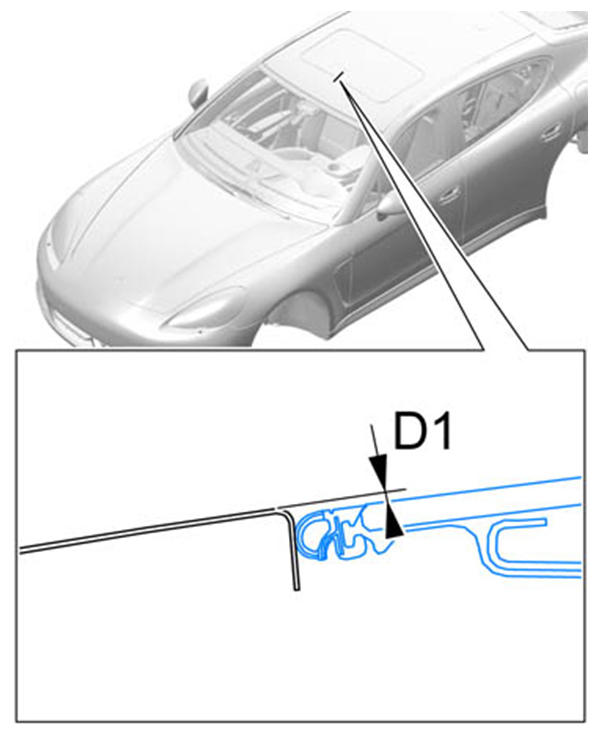

Fig 1: Identifying Gap Dimensions Of Sunroof (D1)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 0 mm+1 mm (D2)

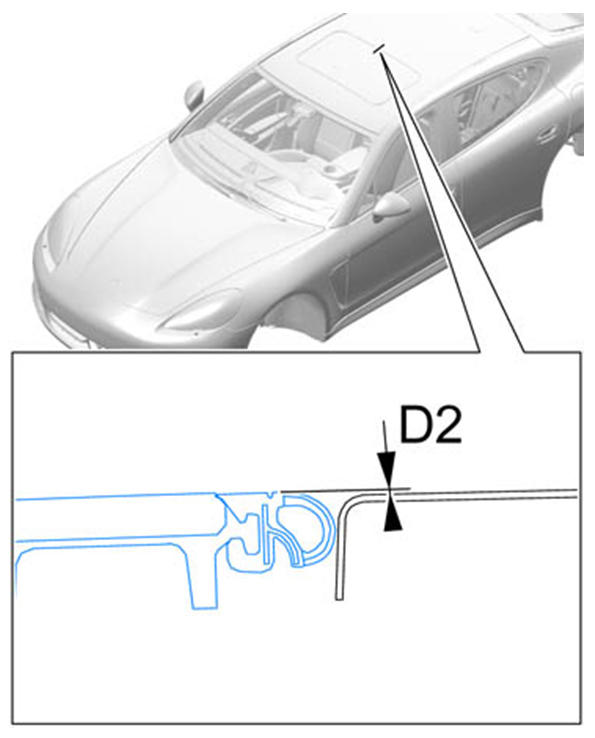

Fig 2: Identifying Gap Dimensions Of Sunroof (D2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
