Disassembling Rear Lid
- Remove electronic components (depending on equipment).
- 1.1. Remove antenna control unit. → REMOVING CONTROL UNIT FOR ANTENNA
- 1.2. Remove antenna amplifier. → REMOVING ANTENNA AMPLIFIER
- 1.3. Remove control unit for auxiliary heater. → REMOVING CONTROL UNIT FOR AUXILIARY HEATER
- 1.4. Remove antenna for auxiliary heater. → REMOVING ANTENNA FOR AUXILIARY HEATER
- Remove rear lid seals (on lid side). → Removing And Installing Rear Lid Seal 559419 REMOVING AND INSTALLING REAR LID SEAL
- Remove adjusting elements for tailgate.

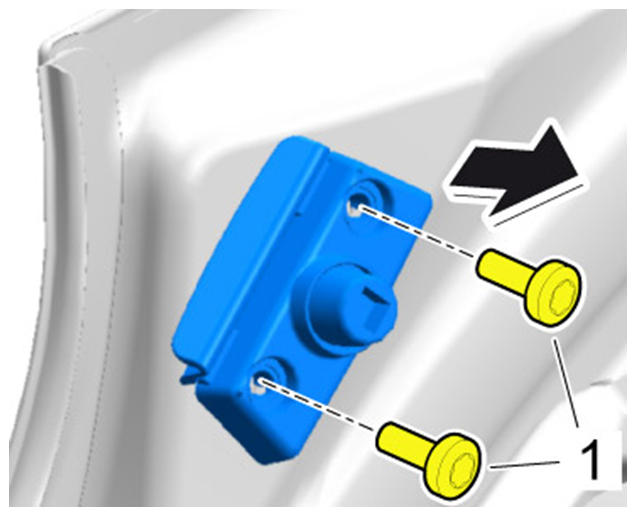

- 3.1. Unscrew fastening screws -1-
for adjusting element.
- 3.2. Remove adjusting element.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

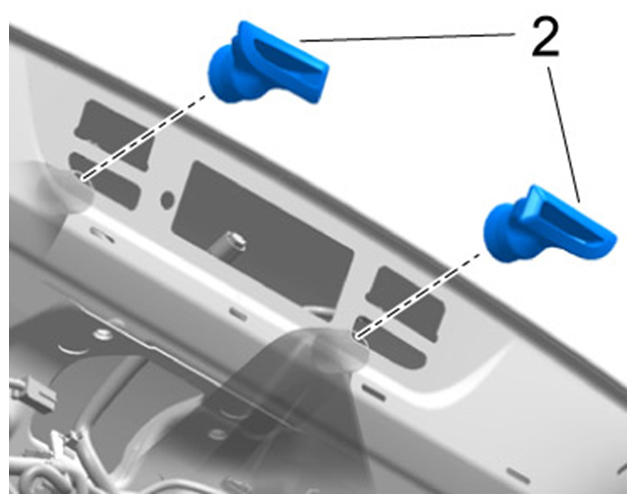

- Pull water drains for spoiler module -2-
out of the opening in the panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

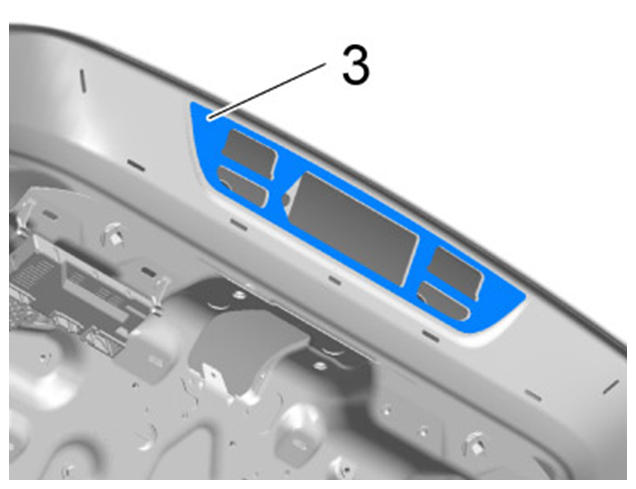

- Pull off adhesive film -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove insulation from rear lid.

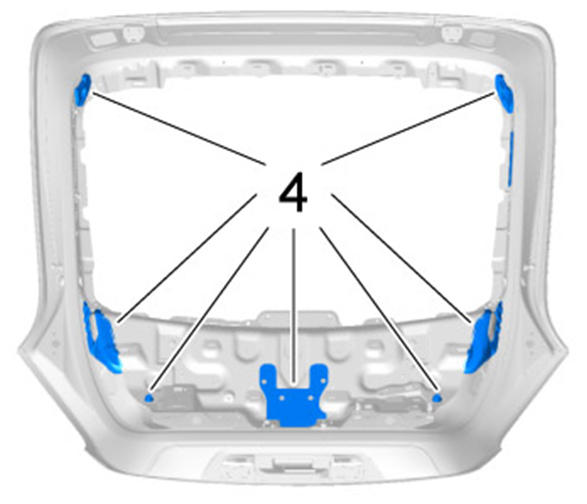

- 6.1. Pull molded parts -4-
out of the opening in the panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

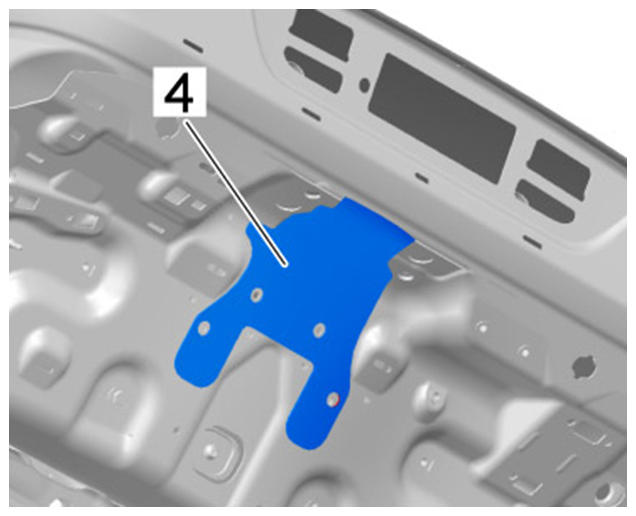

- 6.2. Pull off affixed section of insulation -4-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

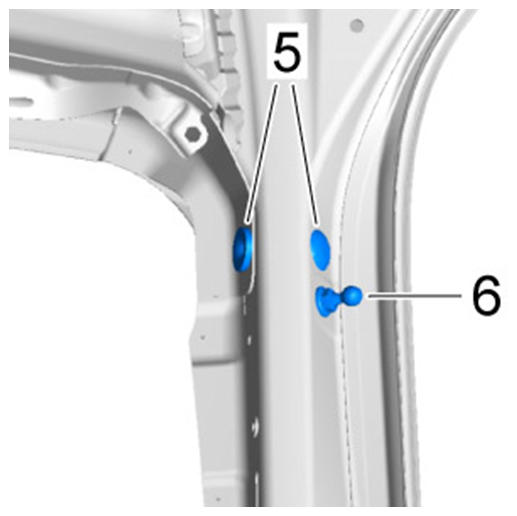

- Pull guides for wire harness/caps -5-
out of the openings in the panel.
- Unscrew ball joint -6-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

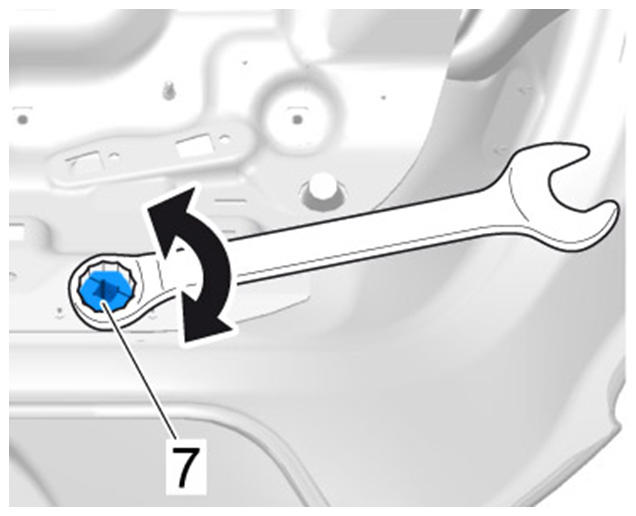

- Remove mounting for rubber stop -7-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 9.1. Loosen mountings for rubber stop by turning them 90°.
- 9.2. Remove mountings for rubber stop.
