Tightening Rear Fuse Box

  1. Slide the fuse box into the guide from above.

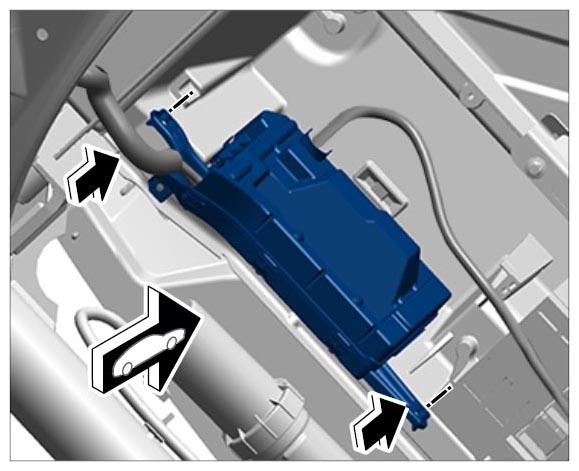

    Fig 1: Sliding Fuse Box
    G09814639Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in and tighten the fastening screw -1-  on the fuse box.

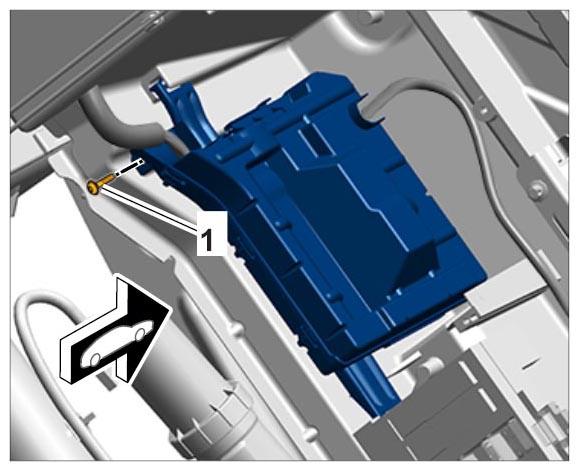

    Fig 2: Tightening Fuse Box Fastening Screws
    G09814640Courtesy of PORSCHE CARS NORTH AMERICA, INC.
