Securing Fuse Box At Front Left And Right

  1. Position the fuse boxes from inside.
  2. Tighten the two fastening screws -2-  on the fuse box.

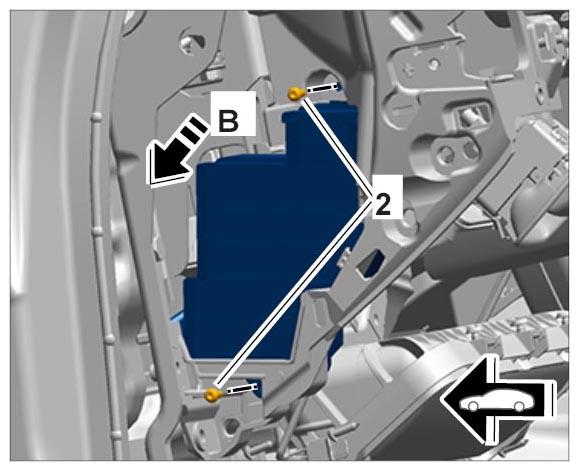

    Fig 1: Tightening Fuse Box Fastening Screws
    G09814638Courtesy of PORSCHE CARS NORTH AMERICA, INC.
