Detaching Relay Carrier Under Passenger's Seat

  1. Move passenger's seat all the way back.
  2. Pull up notch in the carpeted floor -arrow-  and secure it at the side.

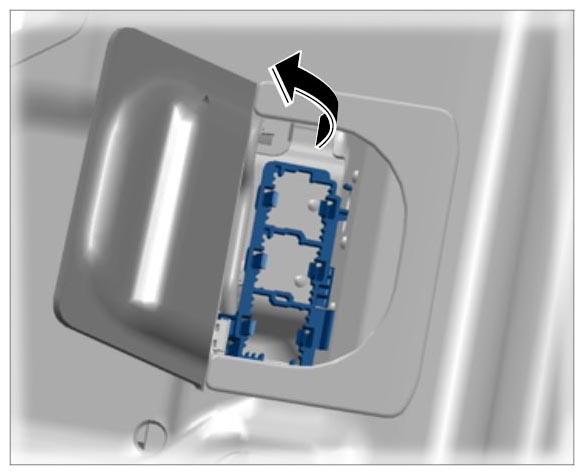

    Fig 1: Lifting Cut-Out In Carpeted Floor
    G09814630Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Detach relay carrier under passenger's seat.
    1. 3.1. Release retaining clip -arrow A-  .
    2. 3.2. Swivel out relay carrier -arrow B-  .
    3. 3.3. Pull retaining lug out of the locking mechanism -arrow C-  .

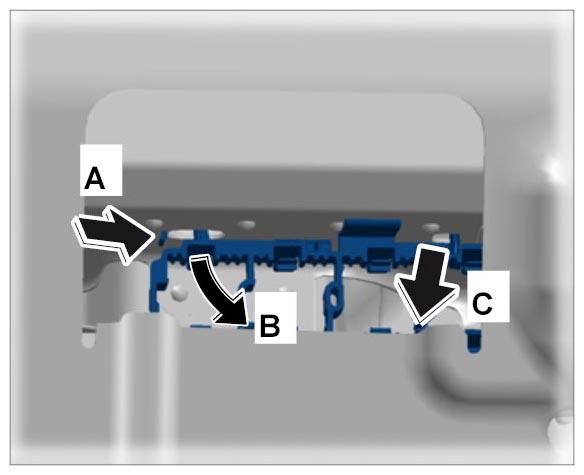

      4. Fig 2: Loosening Relay Carrier Under Passenger Seat
      G09814631Courtesy of PORSCHE CARS NORTH AMERICA, INC.
