Installing Cutoff Relay

Information

• Use new nuts!

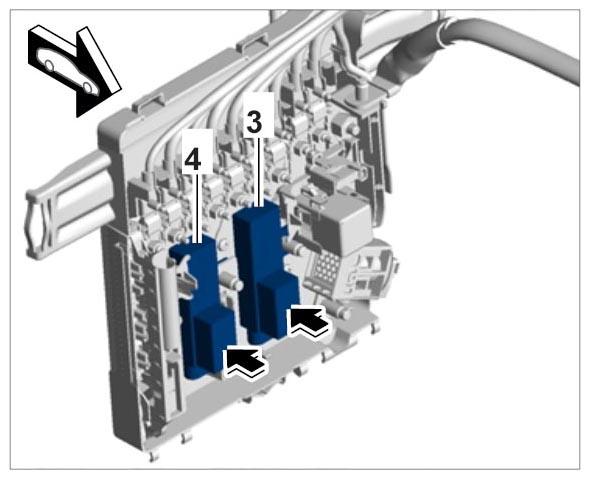

1. First position cutoff relay -4-  , then cutoff relay -3-  .
   Fig 1: Positioning Cutoff Relays

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

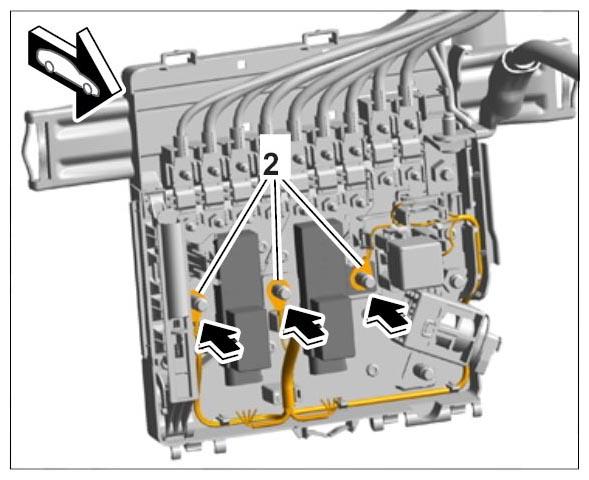

2. Push the eyelets -2-  of the electric lines onto the studs.
   Fig 2: Pushing Eyelets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

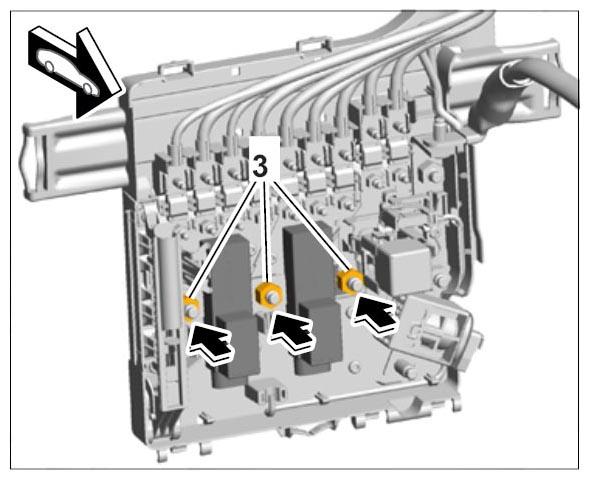

3. Tighten the fastening nuts -3-  on the cutoff relays. → Tightening torque: 8 Nm (6 ftlb.)
   Fig 3: Tightening Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

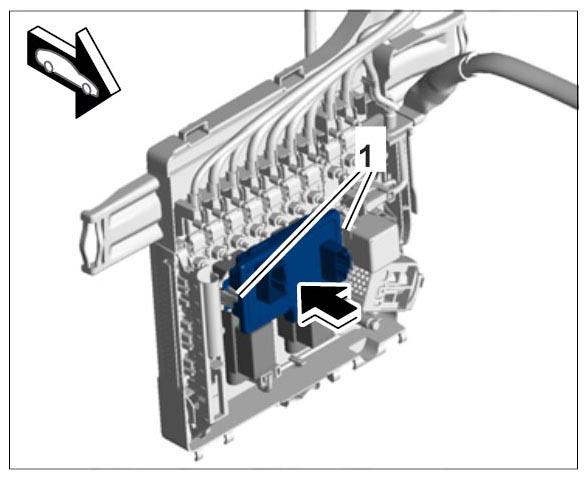

4. Clip the (HSB) control unit in at the clips -1-  .
   Fig 4: Clipping (HSB) Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

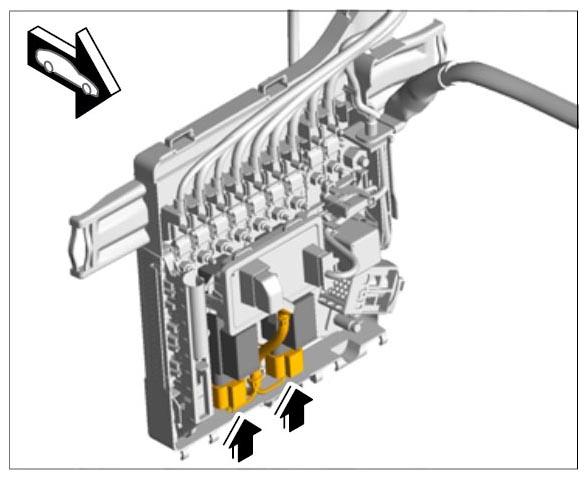

5. Plug in electric plug connections for the cutoff relays until the connectors engage securely.
   Fig 5: Connecting Electric Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

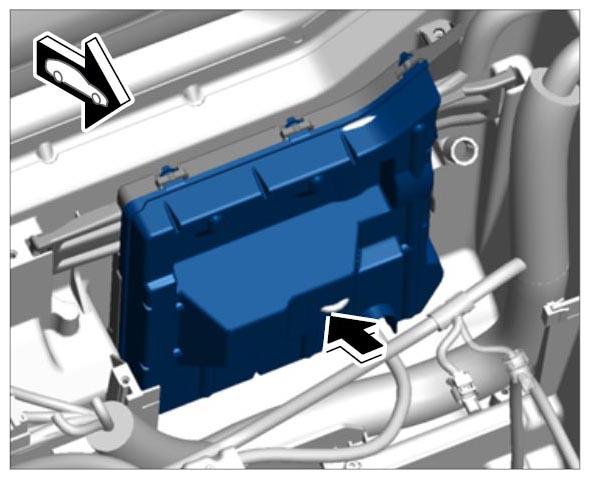

6. Close the cover on the power distributor (HSB) until the locking lugs engage securely.
   Fig 6: Closing Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

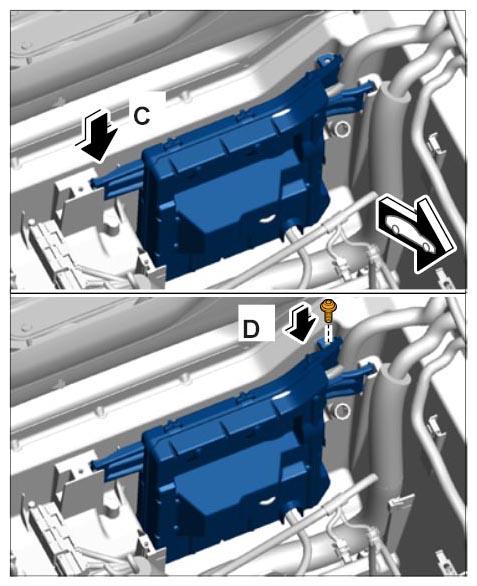

7. Slide the power distributor (HSB) into the guide -arrow C-  and tighten the fastening screw -arrow D-  .
