Subsequent Work

  1. Fit carpet.
  2. Install rear seat at the left. → INSTALLING REAR SEAT
  3. Lift up the fuel tank and fit restraining straps at the middle, left and right. → INSTALLING FUEL TANK

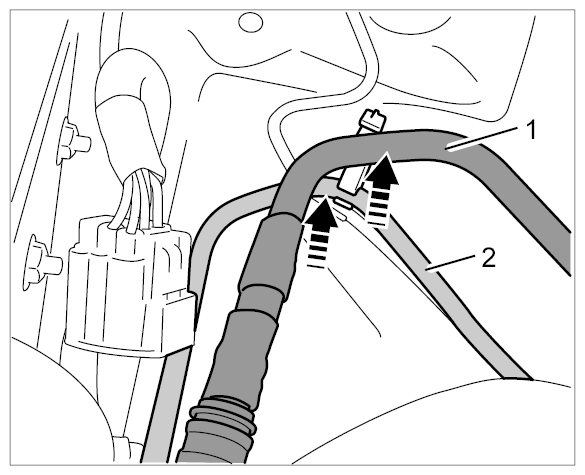

  4. Clip in fuel line -1-  and fuel vent line -2-  on the underbody at the right of the fuel tank -arrow-  .
    Fig 1: Clipping Fuel Line
    G09814103Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Fill the fuel tank. → FILLING WITH FUEL (FILLING FUEL TANK)
  6. Connect the battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
