Overview Of Main Wire Harnesses

  1. Main wire harness in engine compartment
  2. Main wire harness in passenger compartment, left
  3. Main wire harness in passenger compartment, right
  4. Main wire harness under dashboard
  5. Main wire harness in luggage compartment

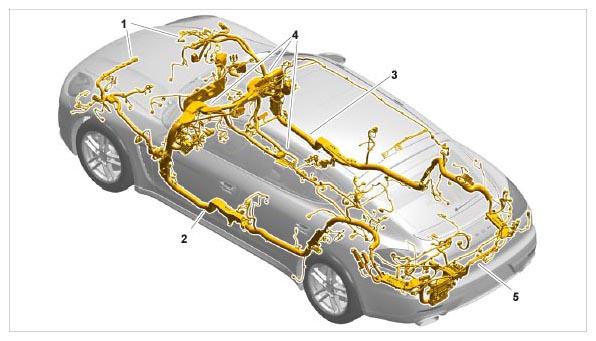

    6. Fig 1: Overview Of Main Wire Harnesses
    G09814009Courtesy of PORSCHE CARS NORTH AMERICA, INC.
