Securing Main Wire Harness Under Dashboard
- Installation is performed in reverse order.
- First lay the main wire harness loosely under the dashboard and in the center console, ensuring that it is positioned correctly.
- Pull wire harnesses for the engine compartment through the relevant cut-outs.
- Secure cable ducts.
- Secure main wire harness under the dashboard and in the center console as well as lines coming from it.
- Plug in control units and electric plug connections until they engage securely.

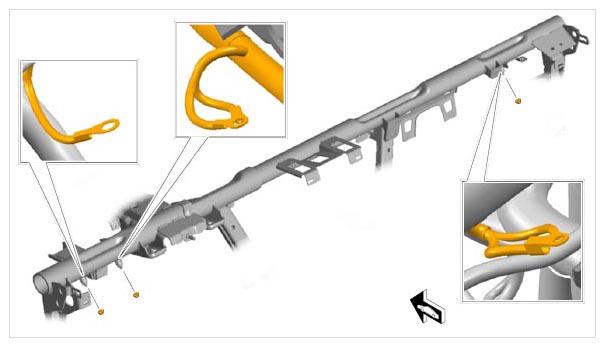

- Connect ground points on the dashboard support.
- Connect ground points.
- Secure antenna.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
