Replacing Level Sensor

Information

• In running gear with level adjustment, a level sensor is installed on each spring strut.
• The level sensor is screwed to the body and upper control arm.

1. Turn steering until you have easy access to the level sensor.
2. Counter with an open-ended wrench at the two flats on the linkage -1-  and unscrew fastening nut -2-  .

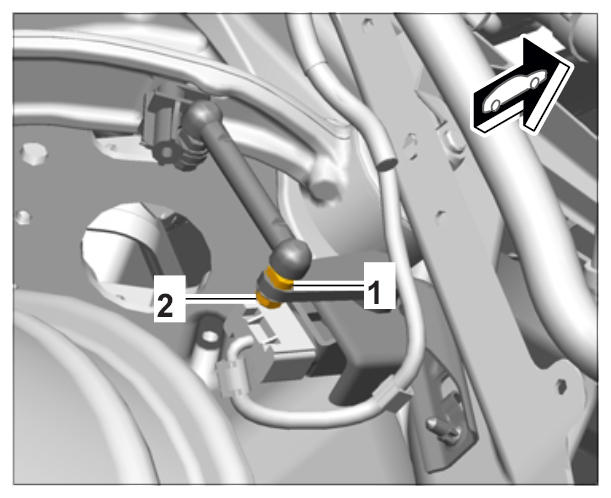

   Fig 1: Identifying Linkage And Fastening Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Press electric connector together and disconnect it. -arrows-

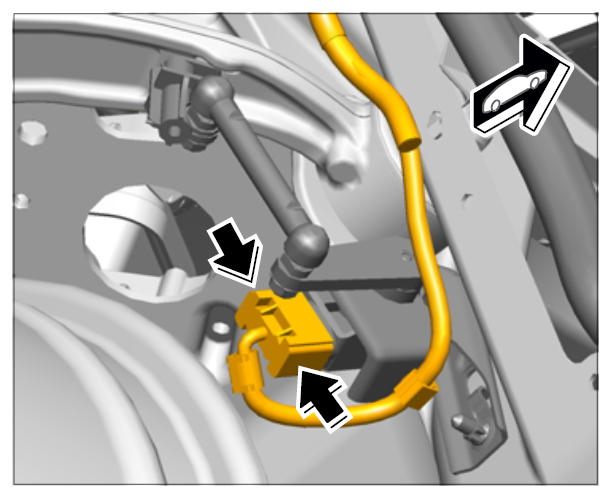

   Fig 2: Disconnecting Connector On Level Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Unscrew fastening screw -arrow-  and remove the level sensor.

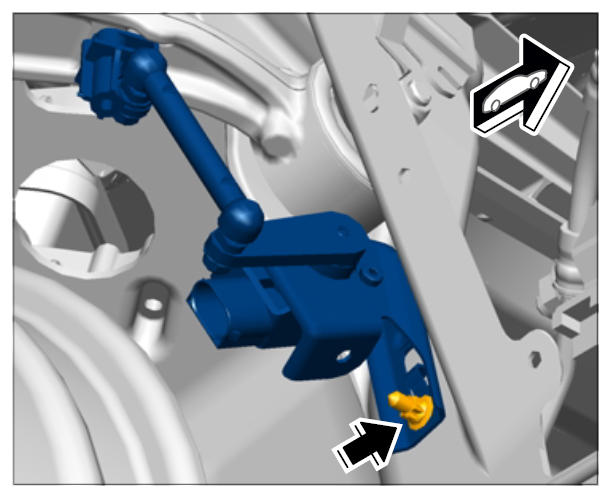

   Fig 3: Locating Fastening Screw On Level Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Installation is performed in reverse order.

   Level sensor holder to body: Tightening torque 10 Nm (7.5 ftlb.)
